Door Rope Gasket 7 Feet 3/4" For Whitfield Profile 30FS For Single Bent Glass Piece
- View all options as list
| Sort by Price | Sort by Availability | Sort by CODE | Sort by [FRG-GASKETKIT]Add Gasket Adhesive Or Gasket Cement |
|---|---|---|---|
$3013
|
Available
|
3/4-RNDGSK-7FT-AW83-Nonreturnable-CUSTOM
|
[FRG-GASKETKIT]Add Gasket Adhesive Or Gasket Cement:
|
$3634
|
Available
|
3/4-RNDGSK-7FT-AW80-Nonreturnable-CUSTOM
|
[FRG-GASKETKIT]Add Gasket Adhesive Or Gasket Cement:
|

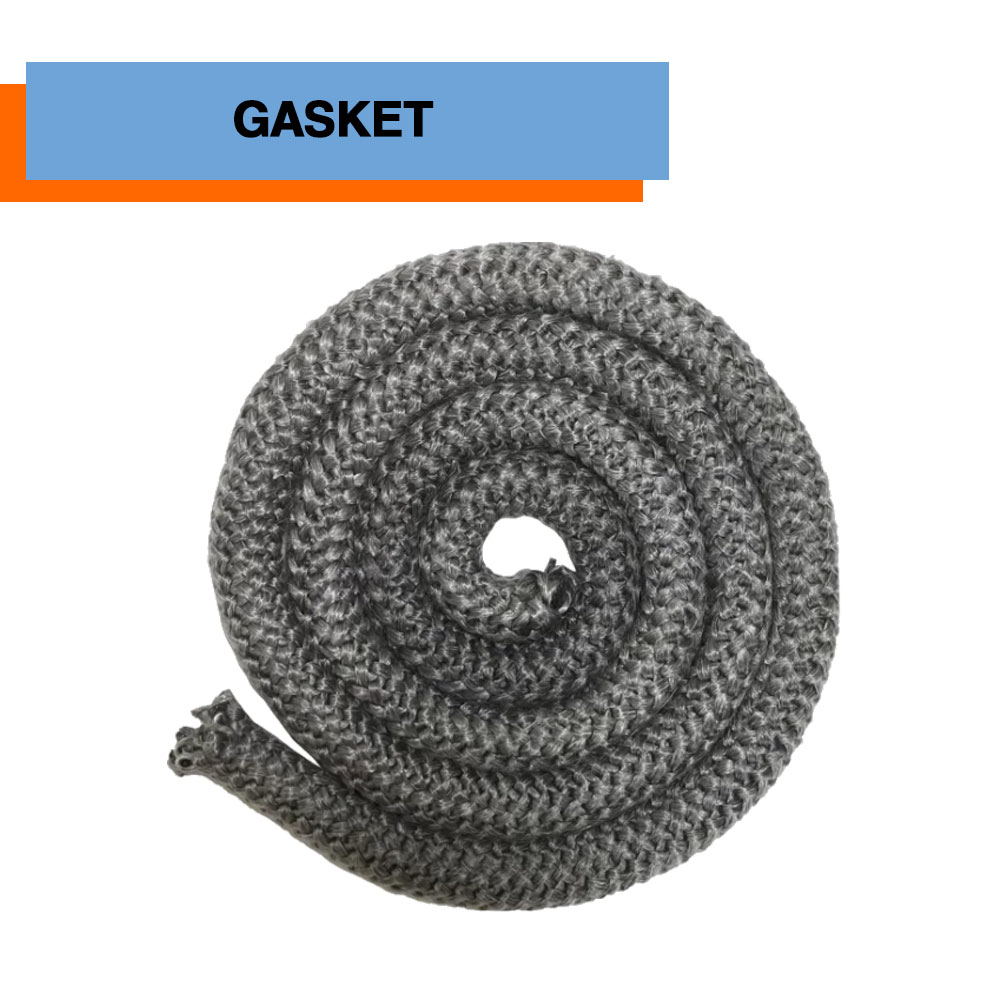

Replace a worn door seal on a Whitfield Profile 30FS pellet stove configured with a single bent glass piece. This replacement gasket is supplied as 7 feet of 3/4" round fiberglass rope infused with black graphite for durability, flexibility, and heat resistance.
The gasket is rated for temperatures up to 1000°F and is intended to restore the seal around the stove door. A properly fitted door gasket helps reduce unwanted air leakage and supports proper stove operation.
Key Features:
- Designed for the listed Whitfield Profile 30FS application with a single bent glass piece
- 3/4" round fiberglass rope gasket
- 7-foot gasket length
- Black graphite-infused construction
- Rated for temperatures up to 1000°F
- Flexible rope construction for following door gasket channels and curves
- Designed to resist unraveling
- Non-asbestos material
- Water-resistant
- Mold-resistant
- Intended for replacement of a worn pellet stove door gasket\
Important Information:
This listing specifically identifies the Profile 30FS configuration with a single bent glass piece. Confirm your stove and door configuration before ordering rather than assuming the gasket fits every Profile 30FS configuration.

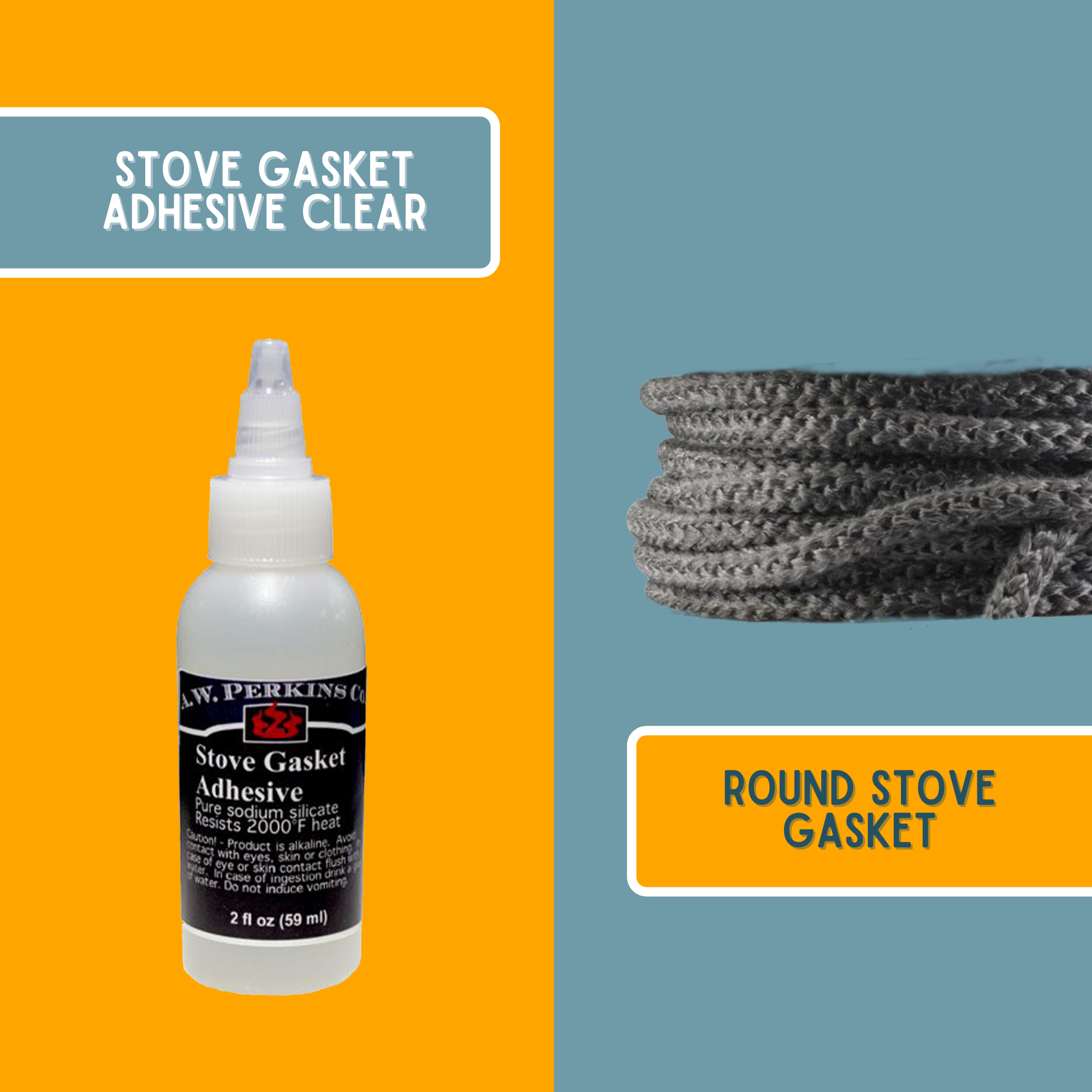

Before installation, remove the existing gasket and thoroughly clean the gasket channel and mounting surface. Secure the replacement using an appropriate stove gasket adhesive or stove gasket cement.
Do not use high-temperature silicone sealant as an adhesive for the gasket or for repairing the stove or insert.
FAQs:
Q: What size gasket is supplied?
A: The existing product information specifies a 3/4" round fiberglass rope gasket supplied in a 7-foot length.
Q: Is this gasket for every Whitfield Profile 30FS stove?
A: The existing listing specifically describes this gasket for the Whitfield Profile 30FS with a single bent glass piece. Confirm your stove and door configuration before ordering.
Q: Why does the glass configuration matter?
A: The original product information specifically identifies the single bent glass configuration as the intended application. Compatibility with other Profile 30FS door configurations is not confirmed.
Q: What temperature is the gasket rated for?
A: The existing product information lists a temperature rating of up to 1000°F.
Q: Does this gasket contain asbestos?
A: No. The existing product information identifies the gasket as a non-asbestos fiberglass product.
Q: How is the replacement rope gasket installed?
A: Remove the old gasket, clean the gasket channel and mounting surface, and secure the replacement with an appropriate stove gasket adhesive or stove gasket cement.
Fit / Measuring / Safety Notes:
- Confirm that your stove is a Whitfield Profile 30FS before ordering.
- Confirm that the stove has the single bent glass configuration specified by the existing product information.
- Do not assume compatibility with Profile 30FS doors using a different glass or door configuration.
- Consult the stove owner's manual or manufacturer parts information for the specified gasket size or replacement part number when available.
- If manufacturer specifications are unavailable, carefully measure the existing gasket and gasket channel.
- Measure the width and depth of the gasket channel to help verify the required gasket diameter.
- Measure the approximate total length of the existing gasket before removal when possible.
- Remove old gasket material, cement, and loose residue before installing the replacement.
- Use a stove gasket adhesive or gasket cement appropriate for the application.
- Do not use high-temperature silicone sealant as the gasket adhesive.
- Follow applicable adhesive curing instructions before operating the stove.
- Verify that the door closes and seals properly before returning the stove to normal operation.
Helpful Links:
Product Details / Specifications:
- Application: Pellet stove door gasket replacement
- Listed stove model: Whitfield Profile 30FS
- Listed door configuration: Single bent glass piece
- Gasket type: Round rope gasket
- Material: Fiberglass
- Treatment: Black graphite-infused
- Diameter: 3/4"
- Length: 7'
- Temperature rating: Up to 1000°F
- Asbestos: Non-asbestos
- Water resistance: Yes
- Mold resistance: Yes
- Adhesive: See Confirm Before Publishing
Installation
- Remove the old combustor gasket wrap completely.
- Clean the combustor housing area thoroughly.
- Measure and cut the required length.
- Wrap the gasket evenly around the combustor.
- Ensure proper spacing for thermal expansion.
- Secure lightly if needed (e.g., masking tape) during installation.
- Reinstall combustor carefully without over-compressing.
Note: Always allow room for expansion during operation. Over-packing may damage the combustor or stove components.
Manufacturer Warranty:
Fast Replacement Glass provides Fiberglass Rope Gaskets to our customers and warrants the product to be free from material defects.
Fast Replacement Glass does not offer warranties on performance or customer use of the gaskets. How a customer handles, installs, and uses processes the gasket product is solely the customer's responsibility. Fast Replacement Glass cannot be held liable for damage, or failure of the product due to wrongful installation.
Whitfield Profile 30FS Door Rope Gasket 7 Feet 3/4" | If Stove Has Single Bent Glass Piece
