Replacement Ceramic Glass Panel for Whitfield Cascade Stove

Overview:

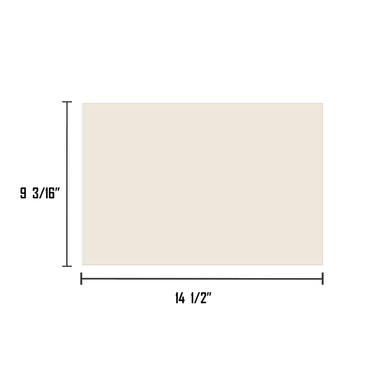

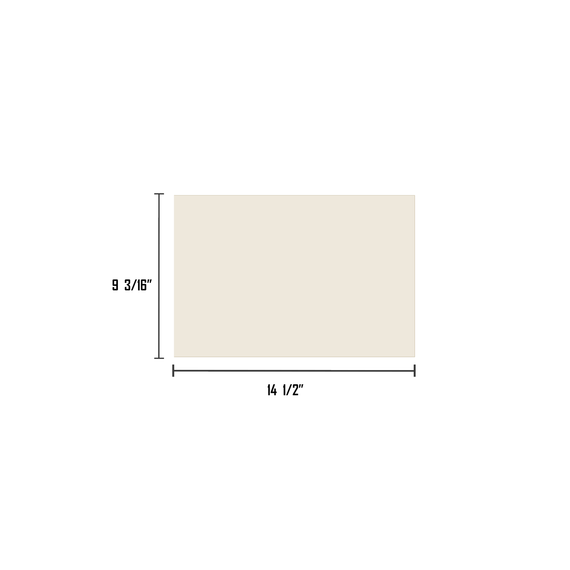

Replace damaged or broken glass on a Whitfield Cascade stove with this custom-cut ceramic replacement panel. The glass measures 14 1/2" wide by 9 3/16" high and is 3/16" thick, with a subtle amber tint. It is manufactured to withstand temperatures up to 1250°F and resist the thermal shock caused by extreme temperature changes.

Ceramic glass is designed for high-temperature stove applications where flames may periodically contact the glass. Proper fit and installation are important: allow at least 1/8" of room for thermal expansion and avoid overtightening mounting hardware.

Key Features:

• Custom-cut ceramic replacement glass for the Whitfield Cascade
• 14 1/2" wide x 9 3/16" high
• 3/16" thick ceramic glass
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist extreme temperature changes and thermal shock
• Ceramic glass can withstand up to three times the heat of tempered glass

Important Information:

Metal screws and mounting hardware expand when exposed to high temperatures. Do not overtighten the hardware securing the glass, as excessive pressure can cause breakage during appliance operation.

Ceramic glass should not be used as an automatic substitute for tempered glass. Do not install ceramic glass on a factory-built or prefab fireplace unless the unit is heater rated and the appliance manufacturer permits ceramic glass. Some masonry fireplace doors may be approved for ceramic glass; consult the appliance owner's manual before replacement.

FAQs:

Q: What are the dimensions of the glass?
A: The panel measures 14 1/2" wide by 9 3/16" high and is 3/16" thick.

Q: Is this tempered glass?
A: No. This replacement panel is ceramic glass designed for high-temperature stove applications.

Q: How much expansion clearance should be allowed?
A: Allow at least 1/8" of room for thermal expansion to help prevent the glass from breaking as it heats.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten the hardware. Metal mounting components also expand when heated, and excessive pressure can damage the glass.

Q: Can this ceramic glass replace tempered glass in a fireplace door?
A: Not automatically. Ceramic glass should not replace tempered glass unless the appliance or fireplace door is specifically approved for ceramic glass. Consult the owner's manual before making the substitution.

Fit / Measuring / Safety Notes:

• Verify the appliance model before ordering; confirmed fitment is the Whitfield Cascade.
• Confirm the required glass dimensions against your existing panel or appliance documentation.
• Allow at least 1/8" of room for thermal expansion.
• Do not overtighten screws, clips, or mounting hardware against the ceramic glass.
• Follow the appliance manufacturer's installation instructions and safety requirements.
• Do not replace tempered fireplace-door glass with ceramic glass unless the appliance or door is specifically approved for ceramic glass.
• Do not install ceramic glass on a factory-built or prefab fireplace unless the unit is heater rated and approved for this application.
• Replace damaged glass before operating the appliance.
