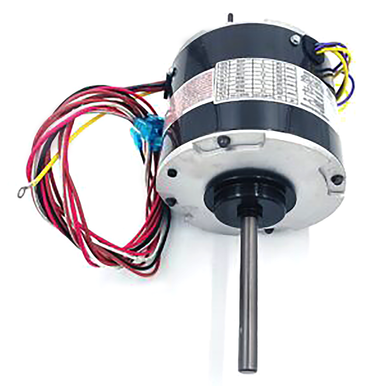

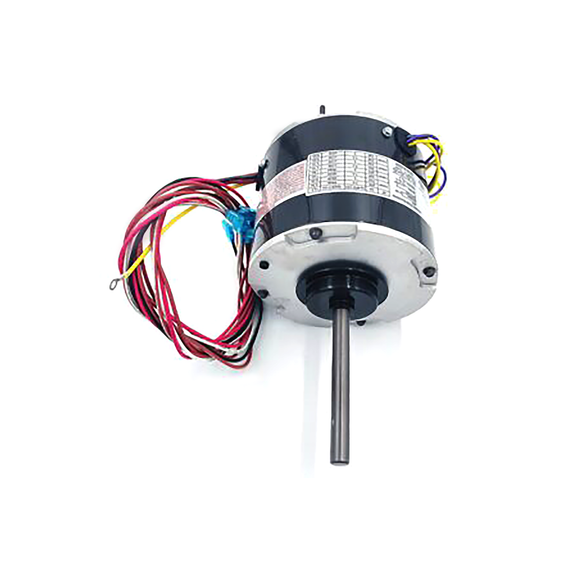

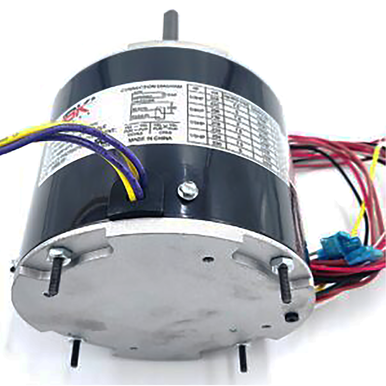

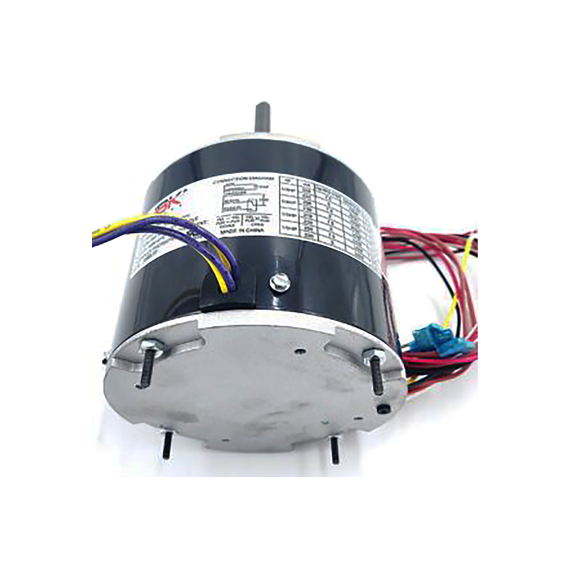

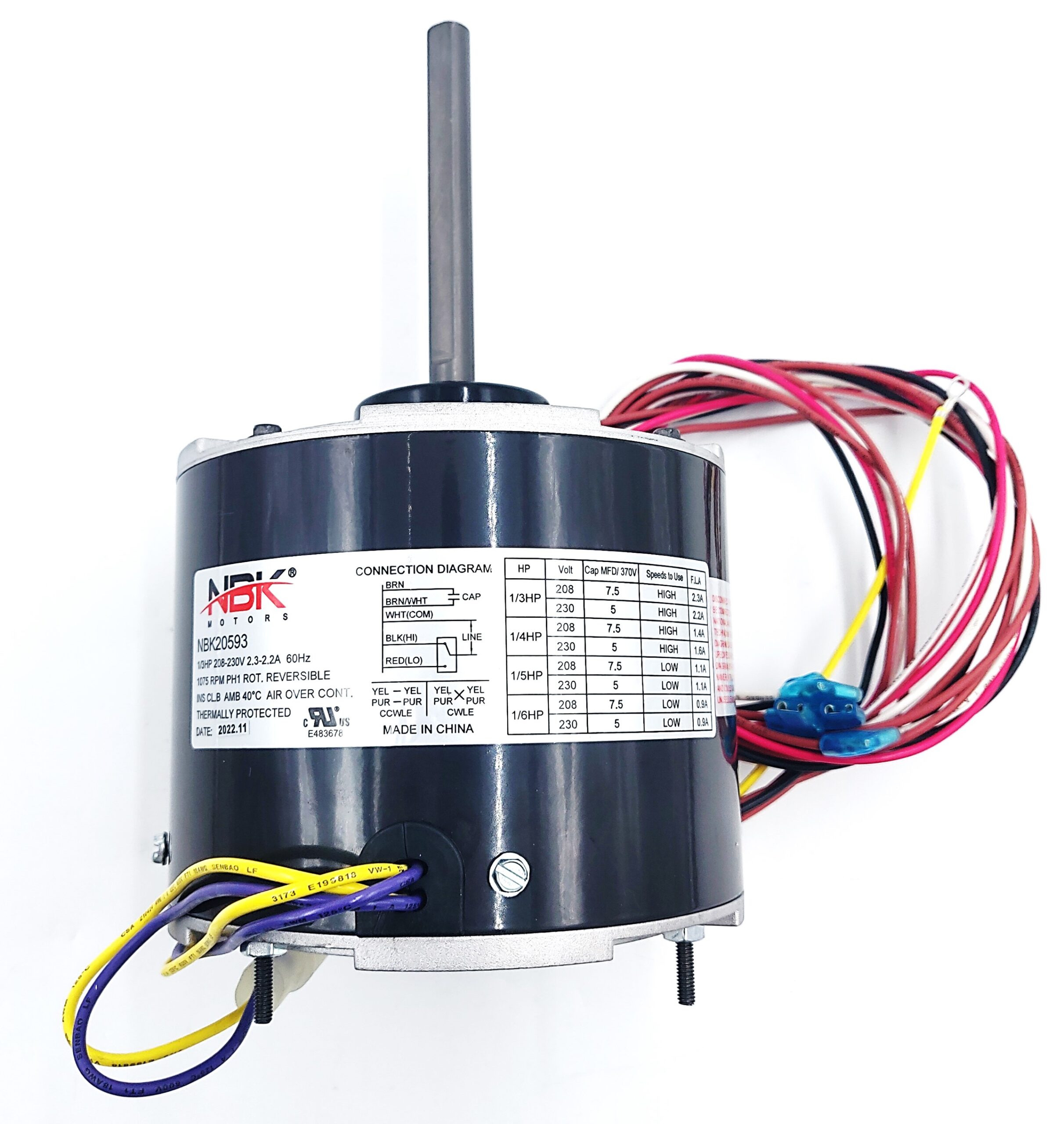

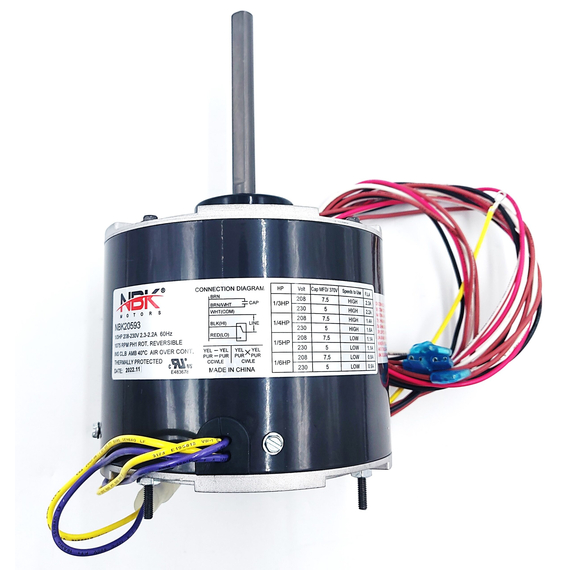

Ensure optimal HVAC system maintenance by replacing your condenser motor with this US Motors/5462 Condenser Motor 208-230V (20593) industry-approved and energy-efficient part. This motor can operate between 208-230 volts. It is designed with Class B insulation, ensuring thermal resistance. It requires a power supply with a frequency of 60 Hz, indicating 60 alternations of current direction per second. The device draws a current ranging from 2.3 to 2.2 amps during operation. It operates at a rotational speed of 1075 revolutions per minute (RPM). In terms of power, it has a rating between one-third and one-sixth of a horsepower (HP).
Note:
This condenser is equivalent to the following motor:
