Replacement Ceramic Stove Glass for Silent Flame SV1 NXT-1
Overview:

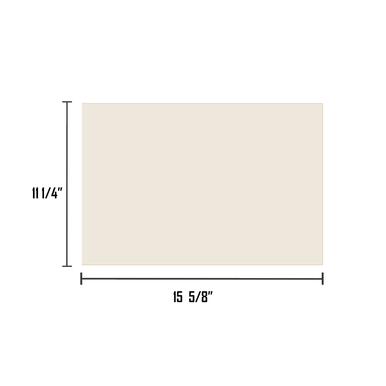

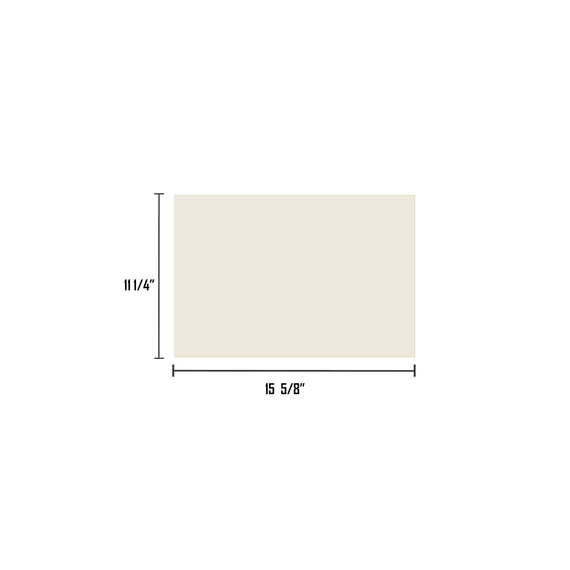

Restore the viewing area of your Silent Flame SV1 NXT-1 with this custom-cut ceramic replacement glass. The glass measures 15 5/8" wide by 11 1/4" high and is 3/16" thick. It features a subtle amber tint and is manufactured to withstand temperatures up to 1250°F.
Ceramic glass is designed to handle the high temperatures and thermal shock associated with wood, coal, and pellet stove applications. Proper fit and installation are important. Allow at least 1/8" of room for thermal expansion and avoid overtightening mounting hardware.
Key Features:
- Custom-cut ceramic replacement glass for the Silent Flame SV1 NXT-1
- Withstands temperatures up to 1250°F
- Designed to resist thermal shock from extreme temperature changes
- Subtle amber tint
- Suitable ceramic glass for wood, coal, and pellet stove applications
- Ceramic glass can withstand up to three times the heat of tempered glass
Important Information:
Ceramic glass and tempered glass are not interchangeable in every appliance. Do not replace tempered glass with ceramic glass on a fireplace door unless the appliance or door is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater rated. Always consult the appliance owner's manual before selecting or installing replacement glass.
FAQs:
Q: What are the dimensions?
A: The glass measures 15 5/8" wide by 11 1/4" high and is 3/16" thick.
Q: Can ceramic glass handle direct exposure to stove flames?
A: The product is manufactured to resist thermal shock caused by extreme temperature changes, including conditions where flames periodically contact the glass.
Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Metal mounting hardware expands when heated, so overtightening can damage or break the glass.
Q: Can I use this ceramic glass to replace tempered fireplace glass?
A: Not unless the appliance or fireplace door is specifically approved for ceramic glass. Check the owner's manual before changing glass types.
Fit / Measuring / Safety Notes:
- Verify the appliance is a Silent Flame SV1 NXT-1 before ordering.
- Confirm the required glass dimensions against the existing opening or original glass.
- Allow at least 1/8" of room for thermal expansion.
- Do not overtighten screws, clips, or other glass-retaining hardware.
- Confirm the correct glass type in the appliance owner's manual before installation.
- Do not substitute ceramic glass for tempered fireplace-door glass unless the application is specifically approved for ceramic glass.
- Do not use ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated.
- Follow the appliance manufacturer's installation and safety instructions.
Helpful Links:
- View all Replacement Glass for Wood, Coal, and Pellet Stove Applications
- Shop Stove Door Gaskets and Related Maintenance Parts
- Read Our Stove & Fireplace Glass Guides
- Caring for Your Wood Stove: Essential Steps for Safe and Efficient Operation
- Contact Us for Help Identifying the Correct Replacement Glass for Your Stove
Product Details / Specifications:
- Brand/Application: Silent Flame
- Width: 15 5/8"
- Height: 11 1/4"
- Thickness: 3/16"
- Temperature Rating: Up to 1250°F
- Glass Tint: Subtle amber
- Material: Ceramic glass
- Application: Replacement stove glass
- Glass Type: Custom cut
Fits Stove Models:
- Silent Flame SV1 NXT-1
Manufacturer Warranty:
Fast Replacement Glass provides pyroceram ceramic glass to our customers based on specific size requirements. We warrant to our immediate customers that the glass product ordered will meet certain standards and will be free from material and workmanship defects on the day of shipment.
Fast Replacement Glass does not offer warranties on performance or customer use of the glass. How a customer handles, installs, and uses processes the glass product is solely the customer's responsibility. Fast Replacement Glass cannot be held liable for breakage, damage, or failure of the product due to wrongful installation or if the glass pane is too tight and doesn't allow for thermal expansion during operation of the heating appliance.
Estimated Lead Time
Orders typically leave our warehouse within 2–3 business days. After your order ships, delivery time will depend on your location and the carrier's transit schedule.
Processing and shipping times may vary based on product availability and carrier service. If you have any questions about current stock or estimated delivery dates, please contact us before placing your order.
