Replacement Side Ceramic Glass Panel for Sierra 4700 Stove

Overview:

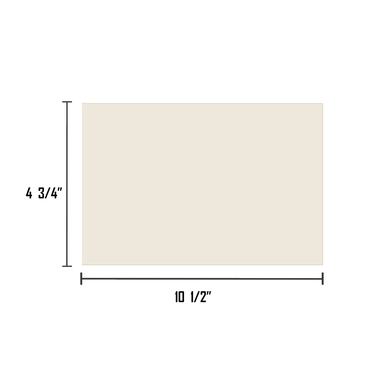

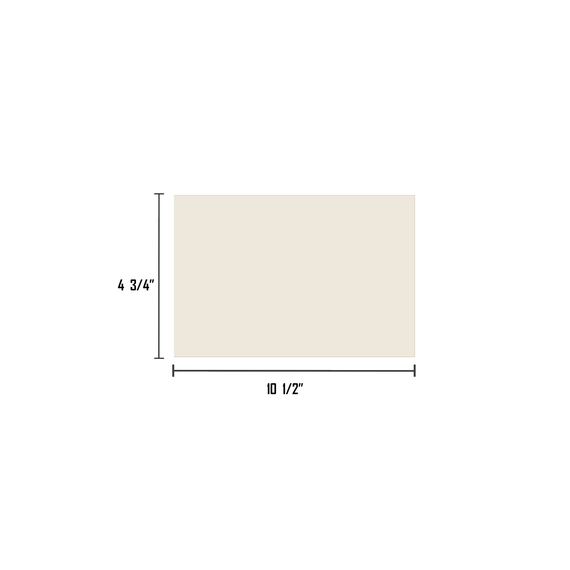

Replace the side glass in your Sierra 4700 with a custom-cut ceramic glass panel made for high-temperature stove applications. This replacement measures 10 1/2" wide by 4 3/4" high and is 3/16" thick. The ceramic glass has a subtle amber tint and withstands temperatures up to 1250°.

Designed to resist thermal shock from the extreme temperature changes encountered during stove operation, ceramic glass is suitable for applications where flames may periodically contact the glass. Proper installation and adequate expansion clearance are essential to help prevent breakage.

Key Features:

• Designed to fit the side glass application on the Sierra 4700
• Custom-cut ceramic replacement glass
• Measures 10 1/2" wide x 4 3/4" high
• 3/16" glass thickness
• Withstands temperatures up to 1250°
• Subtle amber tint
• Resists thermal shock from rapid temperature changes
• Suitable for wood, coal, and pellet stove applications when properly specified

Important Information:

Ceramic glass expands as it heats. Allow at least 1/8" of room for thermal expansion during installation. Mounting screws and other metal hardware also expand at high temperatures, so hardware should not be overtightened against the glass.

Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance or door is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater rated and the manufacturer permits its use. Always consult the appliance owner's manual before replacing the original glass type.

FAQs:

Q: What are the dimensions?
A: The glass measures 10 1/2" wide x 4 3/4" high x 3/16" thick.

Q: How much expansion clearance should I allow?
A: Allow at least 1/8" of room for thermal expansion.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten screws or mounting hardware because the metal also expands when heated and excessive pressure can contribute to glass breakage.

Fit / Measuring / Safety Notes:

• Verify the appliance model is Sierra 4700 before ordering.
• Confirm that the replacement is for the side glass position.
• Compare the listed 10 1/2" x 4 3/4" dimensions with the original panel or manufacturer documentation.
• Confirm the required 3/16" thickness.
• Provide at least 1/8" of clearance for thermal expansion.
• Do not overtighten mounting screws, clips, or retainers against the glass.
• Use only the type of replacement glass approved for your appliance.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and approved for ceramic glass.
• Consult the appliance owner's manual when there is any uncertainty about glass type, fit, or installation.
