Replacement Ceramic Glass for Quadra-Fire 1000 Pellet Stove

Overview:

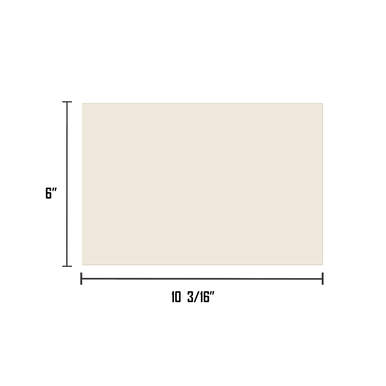

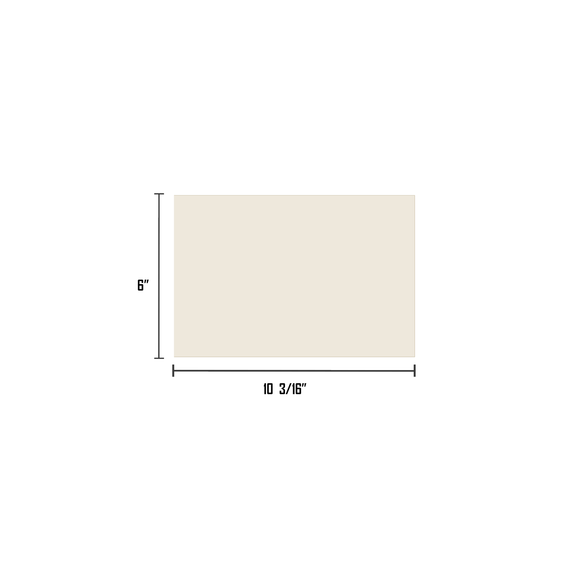

Replace damaged or broken door glass on a QuadraFire 1000 pellet stove with this custom-cut ceramic replacement glass. Measuring 10 3/16" wide by 6" high and 3/16" thick, the glass features a subtle amber tint and is designed to withstand temperatures up to 1250°F.

Ceramic glass is suited for the high-temperature environment of heating stoves and is manufactured to resist thermal shock caused by extreme temperature changes. Proper fit and installation are essential because both the glass and mounting hardware expand as the appliance heats.

Key Features:

• Custom-cut ceramic replacement glass for the QuadraFire 1000 pellet stove
• 10 3/16" wide x 6" high x 3/16" thick
• Withstands temperatures up to 1250°
• Subtle amber tint
• Designed to resist extreme temperature changes and thermal shock
• Suitable for applications where flames may periodically contact the glass

Important Information:

Allow at least 1/8" of room for thermal expansion when installing the glass. Insufficient clearance can place stress on the panel as it heats and may cause breakage.

Do not overtighten screws, clips, or other mounting hardware. Metal hardware also expands at high temperatures, and excessive pressure against the glass can cause damage.

Ceramic glass should never be substituted for tempered glass solely because it offers greater heat resistance. Do not install ceramic glass in a factory-built or prefab fireplace unless the appliance is specifically heater-rated and the manufacturer approves ceramic glass for that application. Always follow the appliance owner's manual and manufacturer requirements.

FAQs:

Q: What are the glass dimensions?
A: The glass measures 10 3/16" wide by 6" high and is 3/16" thick.

Q: Can ceramic glass handle direct exposure to stove flames?
A: This ceramic glass is manufactured to resist thermal shock and is intended for stove applications where flames may periodically contact the glass.

Q: How much expansion clearance should I allow?
A: The provided installation guidance calls for at least 1/8" of room for thermal expansion.

Q: Should the glass mounting hardware be tightened firmly?
A: Do not overtighten it. Mounting hardware expands when heated, and excessive pressure can contribute to glass breakage.

Q: Can I replace tempered fireplace glass with this ceramic glass?
A: Not unless the appliance manufacturer specifically approves ceramic glass for that application. Follow the appliance owner's manual and its replacement-glass requirements.

Fit / Measuring / Safety Notes:

• Verify that the appliance is a QuadraFire 1000 pellet stove before ordering.
• Confirm the required glass dimensions and type against the owner's manual when possible.
• Allow at least 1/8" of room for thermal expansion as specified in the supplied product information.
• Do not overtighten screws, clips, or mounting hardware against the glass.
• Do not force glass into an opening that does not provide the necessary clearance.
• Do not replace tempered fireplace glass with ceramic glass unless the appliance manufacturer specifically approves that glass type.
• Ceramic glass should not be installed in a factory-built or prefab fireplace unless the unit is heater-rated and ceramic glass is approved for that application.
• Follow the appliance manufacturer's instructions for removal, installation, clearances, gaskets, retainers, and approved replacement materials.
