Replacement Ceramic Glass Panel for Osburn Matrix Stove

Overview:

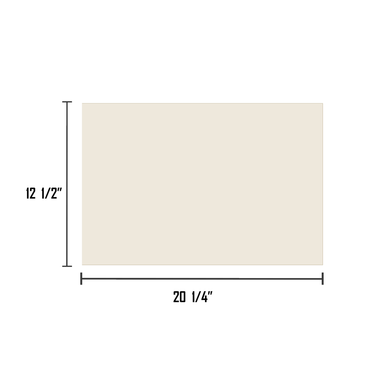

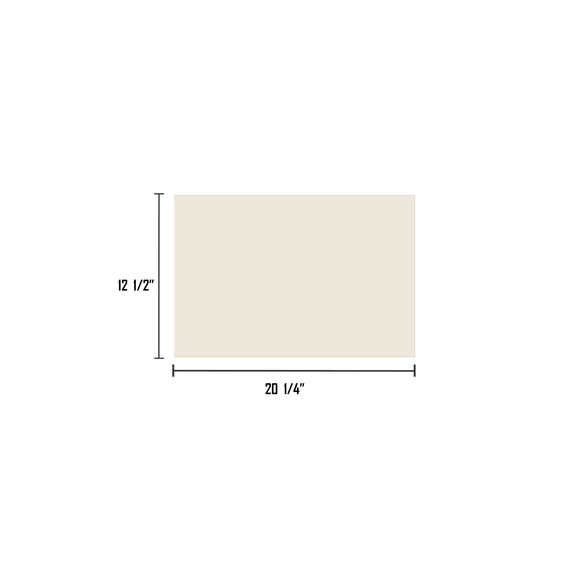

Restore the viewing area of your Osburn Matrix stove with this custom-cut ceramic replacement glass panel. Measuring 20 1/4" wide by 12 1/2" high and 3/16" thick, this glass features a subtle amber tint and is manufactured to withstand temperatures up to 1250°F.

Ceramic glass is designed to tolerate the extreme temperature changes associated with stove operation and can withstand up to three times the heat of tempered glass. Proper fit and installation are essential. Verify your existing glass dimensions and appliance requirements before ordering or installing the replacement.

Key Features:

• Custom-cut ceramic replacement glass for the Osburn Matrix
• Measures 20 1/4" wide x 12 1/2" high
• 3/16" glass thickness
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist thermal shock from extreme temperature changes

Important Information:

Ceramic stove glass requires room to expand as it heats. Allow at least 1/8" of clearance for thermal expansion. Installing the glass without sufficient clearance can cause it to expand against the surrounding components and break.

Metal screws, retainers, and other mounting hardware also expand when exposed to high temperatures. Do not overtighten mounting hardware against the glass.

Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater-rated and the appliance manufacturer permits its use. Always consult the appliance owner's manual before installation.

FAQs:

Q: What are the dimensions of the glass?
A: The panel measures 20 1/4" wide by 12 1/2" high and is 3/16" thick.

Q: Does ceramic glass need expansion clearance?
A: Yes. Allow at least 1/8" of room for thermal expansion to help prevent the glass from breaking as it heats.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten screws or other mounting hardware because the metal components expand when heated and can place damaging pressure on the glass.

Q: Can this ceramic glass replace tempered fireplace-door glass?
A: Not unless the appliance is specifically approved for ceramic glass. Check the appliance owner's manual before changing glass types.

Fit / Measuring / Safety Notes:

• Confirm that your appliance is an Osburn Matrix before ordering.
• Compare the listed 20 1/4" x 12 1/2" dimensions and 3/16" thickness with the glass required for your stove.
• Allow at least 1/8" of clearance for thermal expansion.
• Never force an oversized glass panel into the opening.
• Do not overtighten screws, clips, or other glass-retaining hardware.
• Follow the stove manufacturer's installation and glass-retention instructions.
• Do not replace tempered fireplace-door glass with ceramic glass unless the appliance manufacturer specifically approves the substitution.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and approved for this type of glass.
• If the appliance model, measurements, or required glass type are uncertain, verify them before installation.
