Replacement Ceramic Glass for Osburn 1500 Stove – 17 15/16" x 8 1/2"

Overview:

Restore the viewing area of your Osburn 1500 with replacement ceramic stove glass cut to the listed 17 15/16" x 8 1/2" dimensions. This 3/16"-thick ceramic glass features a subtle amber tint and is designed to withstand temperatures up to 1250°F.

Ceramic glass is made for high-temperature stove applications where the glass may experience significant temperature changes. It can withstand up to three times the heat of tempered glass and is manufactured to resist thermal shock caused by extreme temperature changes.

Key Features:

• Designed to fit the Osburn 1500 stove
• Custom-cut ceramic replacement glass

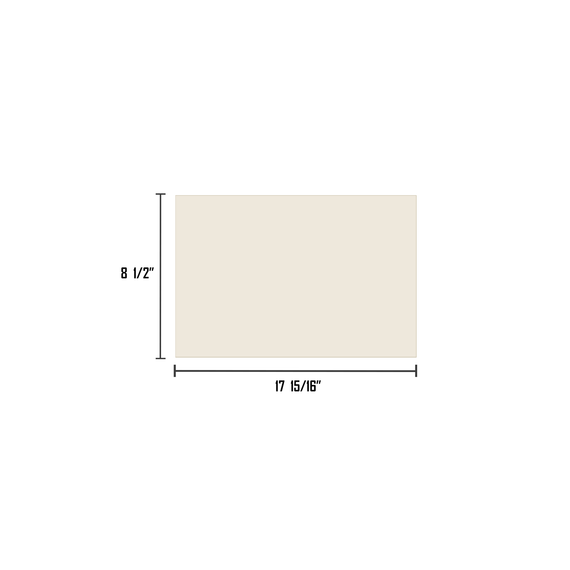

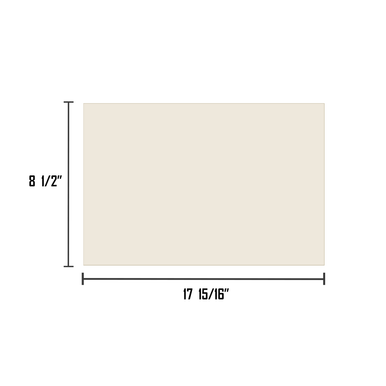

• Measures 17 15/16" wide x 8 1/2" high
• 3/16" glass thickness
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Suitable ceramic glass material for high-temperature stove applications
• Manufactured to resist thermal shock

Important Information:

Ceramic stove glass requires room to expand as it heats. Allow at least 1/8" of clearance for thermal expansion. Insufficient clearance can place stress on the glass and cause breakage.

Mounting screws and other metal hardware also expand when heated. Do not overtighten the glass-retaining hardware during installation.

Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance or door manufacturer specifically approves ceramic glass for that application. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater rated and the application is approved by the manufacturer. Consult the appliance owner's manual before replacing the original glass type.

FAQs:

Q: What are the dimensions?
A: The glass measures 17 15/16" wide x 8 1/2" high and is 3/16" thick.

Q: Is this tempered glass?
A: No. This product is ceramic glass intended for high-temperature stove applications.

Q: How much expansion clearance should I allow?
A: Allow at least 1/8" of room for thermal expansion. Glass installed without adequate clearance may expand against surrounding components and break.

Q: Should I tighten the mounting hardware firmly against the glass?
A: No. Do not overtighten mounting screws or retaining hardware because metal components expand when heated and can place damaging pressure on the glass.

Q: Can this ceramic glass replace tempered fireplace-door glass?
A: Do not make that substitution unless the fireplace or door manufacturer specifically approves ceramic glass for the application. Consult the owner's manual before changing glass types.

Fit / Measuring / Safety Notes:

• Confirm that your appliance is an Osburn 1500 before ordering.
• Compare the listed 17 15/16" x 8 1/2" dimensions and 3/16" thickness with your required replacement.
• Allow at least 1/8" of clearance for thermal expansion.
• Do not overtighten screws, clips, or other retaining hardware against the glass.
• Follow the appliance manufacturer's installation instructions and safety requirements.
• Do not replace tempered fireplace-door glass with ceramic glass unless the application is specifically approved.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and the manufacturer approves the application.
