Ceramic Stove Glass for Jotul #20 Insert – 18" x 10 1/4"

Overview:

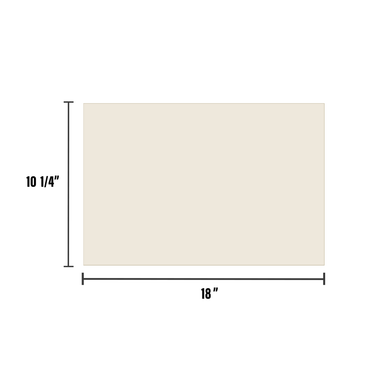

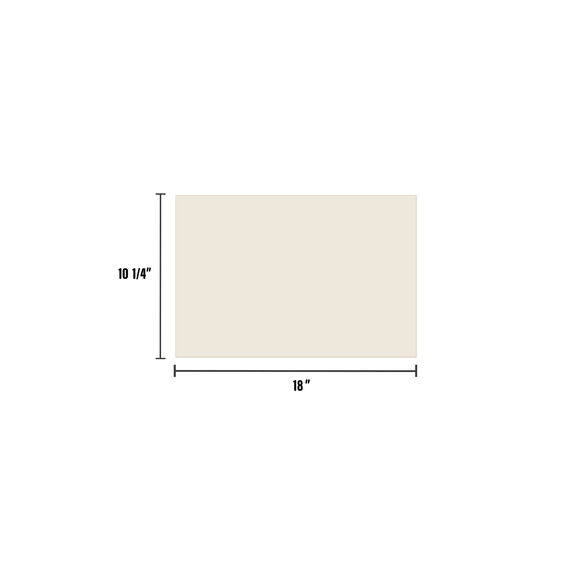

Restore the viewing area of your Jotul #20 Insert with custom-cut ceramic replacement glass made for high-temperature stove applications. This replacement panel measures 18" wide by 10 1/4" high with a 3/16" thickness and has a subtle amber tint.

The ceramic material withstands temperatures up to 1250°F and is designed to resist the thermal shock caused by the extreme temperature changes that occur during stove operation. Ceramic glass can withstand up to three times the heat of tempered glass.

Key Features:

• Fits the Jotul #20 Insert
• Custom-cut ceramic replacement glass
• Measures 18" x 10 1/4"
• 3/16" thick
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist thermal shock from high-temperature stove operation

Important Information:

Proper clearance and installation are important when replacing stove glass. Allow at least 1/8" of room for thermal expansion. Without sufficient clearance, the glass can expand during heating and break.

Mounting screws and other metal hardware also expand as temperatures rise. Do not overtighten the glass-retaining hardware. Hardware secured too firmly can place excessive pressure on the glass and contribute to breakage.

Ceramic glass should not be substituted for tempered glass on a fireplace door unless the appliance or door is specifically approved for ceramic glass. It should never be installed in a factory-built or prefab fireplace unless the unit is heater-rated and approved for this type of glass. Consult the appliance owner's manual before making any glass-type substitution.

FAQs:

Q: What are the dimensions of the glass?
A: The panel measures 18" wide by 10 1/4" high and is 3/16" thick.

Q: Is this tempered glass?
A: No. This product is ceramic glass intended for high-temperature stove applications.

Q: How much room should be left for thermal expansion?
A: Allow at least 1/8" of room for thermal expansion to help prevent pressure-related breakage as the glass heats.

Q: Should the glass-retaining hardware be tightened firmly?
A: The hardware should secure the glass without being overtightened. Metal hardware expands when heated, and excessive pressure can damage the glass.

Q: Can this ceramic glass replace tempered glass in a fireplace door?
A: Not unless the fireplace door or appliance is specifically approved for ceramic glass. Always consult the appliance owner's manual before changing glass types.

Fit / Measuring / Safety Notes:

• Confirm that your appliance is the Jotul #20 Insert before ordering.
• Compare the listed 18" x 10 1/4" dimensions and 3/16" thickness with the glass required for your appliance.
• Allow at least 1/8" of clearance for thermal expansion.
• Do not overtighten screws, clips, or other retaining hardware against the glass.
• Consult the appliance owner's manual for installation and glass-type requirements.
• Do not substitute ceramic glass for tempered fireplace-door glass unless the appliance or door is specifically approved for ceramic glass.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and approved for ceramic glass.
• Replace damaged glass before operating the appliance.
