Ceramic Stove Glass for Hitzer 50-93 Gravity Fed Hopper

Overview:

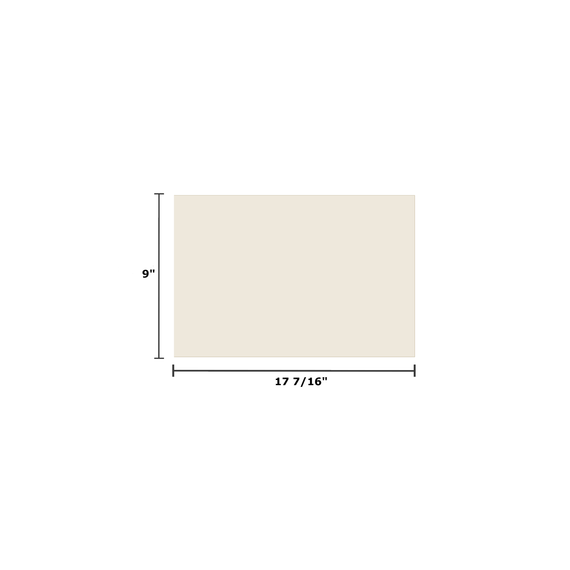

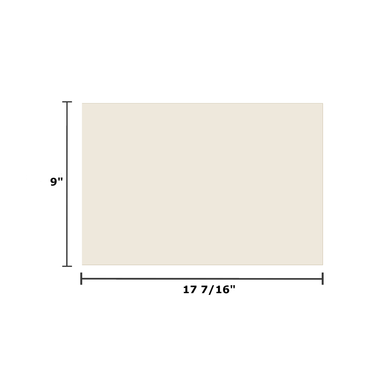

Replace damaged or broken glass on your Hitzer 50-93 Gravity Fed Hopper with this custom-cut ceramic replacement glass. The panel measures 17 7/16" wide by 9" high and is 3/16" thick, providing a replacement specifically listed for the Hitzer 50-93 Gravity Fed Hopper.

This ceramic glass has a subtle amber tint and withstands temperatures up to 1250°F. It is designed to handle the high temperatures and thermal shock associated with stove applications where flames may periodically contact the glass.

Key Features:

• Custom-cut ceramic replacement glass
• Fits the Hitzer 50-93 Gravity Fed Hopper
• Measures 17 7/16" wide x 9" high
• 3/16" thick ceramic glass
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist thermal shock from extreme temperature changes

Important Information:

Ceramic glass requires room to expand as it heats. Allow at least 1/8" of clearance for thermal expansion when installing the replacement panel. Insufficient clearance can place stress on the glass and cause it to break.

Mounting screws and other metal hardware also expand when exposed to high temperatures. Do not overtighten mounting hardware against the glass.

Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance or door is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater-rated and the application is approved by the manufacturer. Consult your appliance owner's manual before replacing the original glass type.

FAQs:

Q: What are the dimensions of the glass?
A: The panel measures 17 7/16" wide x 9" high x 3/16" thick.

Q: Is this tempered glass?
A: No. This product is ceramic replacement glass designed for high-temperature stove applications.

Q: How much expansion clearance should I allow?
A: Allow at least 1/8" of room for thermal expansion.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten the hardware. Metal mounting components expand when heated and can place damaging pressure on the glass.

Fit / Measuring / Safety Notes:

• Verify that your appliance is the Hitzer 50-93 Gravity Fed Hopper before ordering.
• Confirm the required opening and glass dimensions against the existing panel or appliance documentation.
• Provide at least 1/8" of clearance for thermal expansion.
• Do not overtighten screws, clips, or other mounting hardware against the ceramic glass.
• Follow the Hitzer owner's manual and appliance manufacturer's installation requirements.
• Do not replace tempered fireplace-door glass with ceramic glass unless that specific application is approved for ceramic glass.
• Do not install ceramic glass in a factory-built or prefab fireplace unless it is heater-rated and approved for this glass type.
• Replace damaged mounting or sealing components as required by the appliance manufacturer before operating the stove.
