Replacement Ceramic Glass for Harman Magnum, Magnafire Elite & Mark II/III Stoves
Overview:

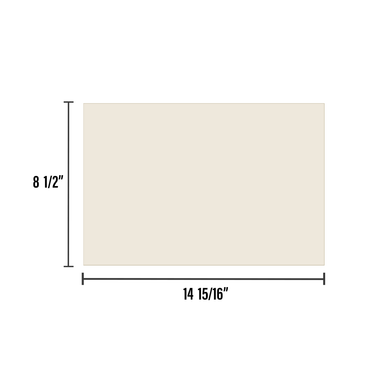

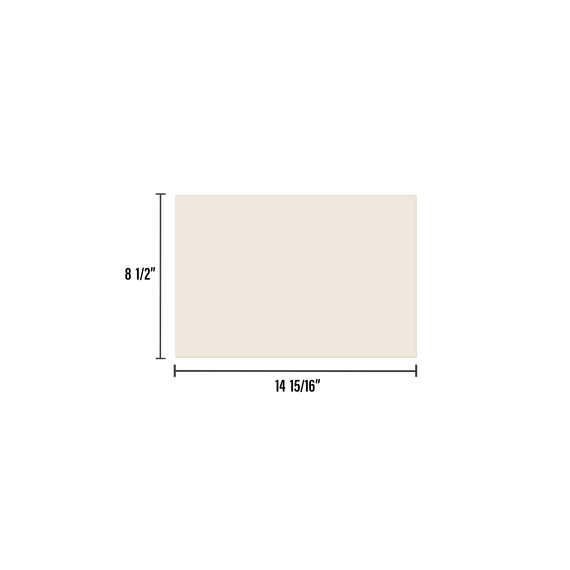

Replace damaged or broken stove glass with this custom-cut ceramic replacement glass made to fit select Harman stove models. Measuring 14 15/16" wide x 8 1/2" high x 3/16" thick, this panel fits the Harman Magnum Stoker, Magnafire Elite, Mark II, and Mark III.
The ceramic glass has a subtle amber tint and is manufactured to withstand temperatures up to 1250°F. It is suitable for high-temperature stove applications where flames may periodically contact the glass and resistance to thermal shock is required.
Key Features:
- Custom-cut ceramic replacement glass for select Harman stoves
- Fits Magnum Stoker, Magnafire Elite, Mark II, and Mark III models
- Measures 14 15/16" x 8 1/2" x 3/16"
- Withstands temperatures up to 1250°F
- Subtle amber tint
- Designed to resist extreme temperature changes and thermal shock
- Suitable for wood, coal, and pellet stove applications
Important Information:
Ceramic glass and mounting hardware expand when exposed to high temperatures. Allow at least 1/8" of room for thermal expansion around the replacement glass and do not overtighten screws or other mounting hardware.
Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance or door is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater rated and approved for this type of glass. Always consult the appliance owner's manual before replacing the original glass.
FAQs:
Q: What size is the replacement glass?
A: It measures 14 15/16" wide x 8 1/2" high x 3/16" thick.
Q: How much expansion clearance should I leave?
A: Allow at least 1/8" of room for thermal expansion.
Q: Should I tighten the mounting hardware firmly against the glass?
A: No. Do not overtighten mounting hardware because both the glass and metal hardware can expand as the stove heats.
Fit / Measuring / Safety Notes:
- Confirm the appliance model before ordering.
- Compare the stated 14 15/16" x 8 1/2" dimensions with the glass required by your stove.
- Verify the required 3/16" thickness.
- Allow at least 1/8" of room for thermal expansion.
- Do not overtighten screws, retainers, clips, or other mounting hardware.
- Consult the appliance owner's manual for the correct glass type and installation requirements.
- Do not replace tempered fireplace-door glass with ceramic glass unless the application is specifically approved.
- Do not install this ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and approved for ceramic glass.
Helpful Links:
- View all Harman Replacement Glass and Compatible Stove Motors and Parts
- Shop Stove Door Gaskets and Related Replacement Components for Routine Stove Maintenance
- Read Our Stove & Fireplace Glass Guides
- Caring for Your Wood Stove: Essential Steps for Safe and Efficient Operation
- Contact Us for Help Identifying the Correct Replacement Glass Before Ordering
Product Details / Specifications:
- Brand Application: Harman
- Glass Type: Ceramic replacement glass
- Width: 14 15/16"
- Height: 8 1/2"
- Thickness: 3/16"
- Temperature Rating: Up to 1250°F
- Glass Tint: Subtle amber
- Application: Wood, coal, and pellet stoves
- Thermal Expansion Clearance: At least 1/8"
Fits Stove Models:
- Harman Magnum Stoker
- Harman Magnifier Elite
- Harman Mark II
- Harman Mark III
Manufacturer Warranty:
Fast Replacement Glass provides pyroceram ceramic glass to our customers based on specific size requirements. We warrant to our immediate customers that the glass product ordered will meet certain standards and will be free from material and workmanship defects on the day of shipment.
Fast Replacement Glass does not offer warranties on performance or customer use of the glass. How a customer handles, installs, and uses processes the glass product is solely the customer's responsibility. Fast Replacement Glass cannot be held liable for breakage, damage, or failure of the product due to wrongful installation or if the glass pane is too tight and doesn't allow for thermal expansion during operation of the heating appliance.
Estimated Lead Time
Orders typically leave our warehouse within 2–3 business days. After your order ships, delivery time will depend on your location and the carrier's transit schedule.
Processing and shipping times may vary based on product availability and carrier service. If you have any questions about current stock or estimated delivery dates, please contact us before placing your order.
