Replacement Side Ceramic Glass for Harman Advance Stove

Overview:

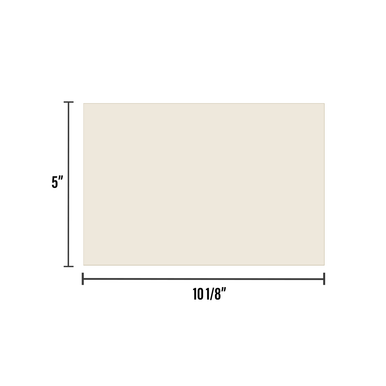

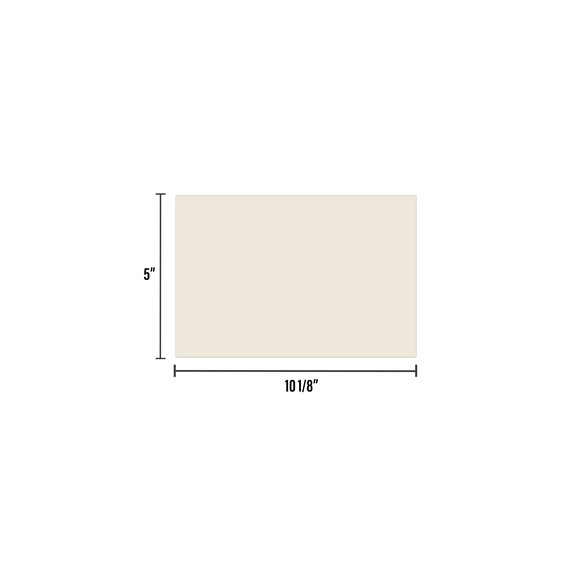

Replace damaged or broken side glass on a Harman Advance stove with this custom-cut ceramic replacement glass. Measuring 10 1/8" wide by 5" high and 3/16" thick, the glass features a subtle amber tint and is manufactured for high-temperature stove applications.

This ceramic glass withstands temperatures up to 1250°F and is designed to resist the thermal shock caused by rapid temperature changes and periodic flame contact. Ceramic glass can withstand up to three times the heat of tempered glass.

Key Features:

• Made for the side glass position on the Harman Advance stove
• Custom-cut ceramic replacement glass
• Measures 10 1/8" wide x 5" high
• 3/16" glass thickness
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist extreme temperature changes and thermal shock

Important Information:

Correct glass type, fit, clearance, and installation are important for safe stove operation. Allow at least 1/8" of room for thermal expansion. Insufficient clearance can cause the glass to expand against surrounding components and break.

Do not over-tighten screws, clips, or other mounting hardware. Metal hardware also expands as it heats, and excessive pressure against ceramic glass can cause breakage.

Ceramic glass should not be substituted for tempered glass on fireplace doors unless the appliance or door is specifically approved for ceramic glass. It should never be installed on a factory-built or prefab fireplace unless the unit is heater-rated and approved for this type of glass. Always consult the appliance owner's manual before changing glass type.

FAQs:

Q: What are the dimensions?
A: The glass measures 10 1/8" wide x 5" high and is 3/16" thick.

Q: How much expansion clearance should I allow?
A: Allow at least 1/8" of room for thermal expansion to help prevent the glass from binding and breaking as it heats.

Q: Should the mounting hardware be tightened firmly against the glass?
A: Do not over-tighten mounting hardware. Metal hardware expands when heated, and excessive pressure can damage the glass.

Fit / Measuring / Safety Notes:

• Confirm that your stove model is the Harman Advance before ordering.
• Confirm that you are replacing the side glass position.
• Compare the listed 10 1/8" x 5" dimensions with the glass required by your appliance.
• Allow at least 1/8" of clearance for thermal expansion.
• Do not force ceramic glass into an opening that does not provide adequate clearance.
• Do not over-tighten screws, clips, or mounting hardware against the glass.
• Follow the Harman Advance owner's manual and appliance manufacturer's installation requirements.
• Do not replace tempered fireplace-door glass with ceramic glass unless the door or appliance is specifically approved for ceramic glass.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and approved for the application.
• Do not operate the appliance with improperly installed, damaged, or broken glass.
