Replacement Center Ceramic Glass for Harman Advance Pellet Stove
Overview:
Replace the center glass in your Harman Advance with this custom-cut ceramic replacement glass. Measuring 14 3/8" wide by 11 1/4" high and 3/16" thick, this glass features a subtle amber tint and is designed to withstand temperatures up to 1250°F. Ceramic glass is manufactured to resist thermal shock from the extreme temperature changes encountered in stove applications.
Key Features:
- Custom-cut ceramic replacement glass for the Harman Advance center glass position

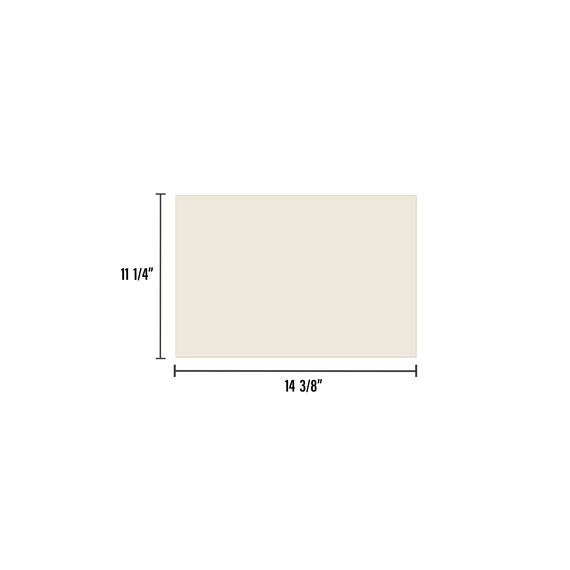

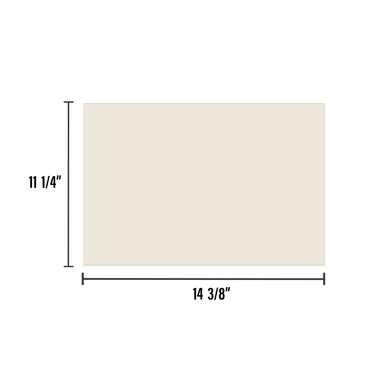

- Measures 14 3/8" wide x 11 1/4" high x 3/16" thick
- Withstands temperatures up to 1250°F
- Subtle amber tint
- Designed to resist thermal shock from changing stove temperatures
- Ceramic glass can withstand up to three times the heat of tempered glass
Important Information:
Ceramic glass requires room for thermal expansion. Allow at least 1/8" of clearance so the glass can expand as temperatures rise. Insufficient clearance or over-tightened mounting hardware can place stress on the glass and cause breakage.
Do not substitute ceramic glass for tempered glass on a fireplace door unless the appliance or door is specifically approved for ceramic glass. Never install ceramic glass in a factory-built fireplace or prefab unit unless the unit is heater rated. Always consult the appliance owner's manual before selecting or installing replacement glass.
FAQs:
Q: What are the glass dimensions?
A: The glass measures 14 3/8" wide x 11 1/4" high x 3/16" thick.
Q: Is this tempered glass?
A: No. This product is ceramic glass designed for high-temperature stove applications.
Q: Does the glass need expansion clearance?
A: Yes. Allow at least 1/8" of room for thermal expansion.
Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Metal mounting hardware also expands when heated. Do not over-tighten the hardware, as excessive pressure can contribute to glass breakage.
Fit / Measuring / Safety Notes:
- Confirm the appliance model and center glass position before ordering.
- Compare the listed 14 3/8" x 11 1/4" dimensions and 3/16" thickness with the glass required for your appliance.
- Provide at least 1/8" clearance for thermal expansion.
- Do not over-tighten screws, clips, or other mounting hardware against the glass.
- Do not replace tempered fireplace-door glass with ceramic glass unless the appliance or door is approved for that application.
- Do not install ceramic glass in a factory-built fireplace or prefab unit unless it is heater rated.
- Consult the appliance owner's manual for installation, glass type, and safety requirements.
Helpful Links:
- View all Harman Replacement Glass Products for Compatible Stove Glass Options
- Shop Stove Door Gaskets and Related Replacement Parts for Routine Appliance Maintenance
- Read Our Stove & Fireplace Glass Guides
- Caring for Your Wood Stove: Essential Steps for Safe and Efficient Operation
- Contact Us for Replacement Glass Assistance When You Need Help Confirming Dimensions, Glass Type, or Application
Product Details / Specifications:
- Brand/Application: Harman
- Material: Ceramic glass
- Width: 14 3/8"
- Height: 11 1/4"
- Thickness: 3/16"
- Temperature Rating: Up to 1250°F
- Glass Tint: Subtle amber tint
- Thermal Expansion Clearance: At least 1/8"
Fits Stove Models:
- Harman Advance (Center Glass)
Manufacturer Warranty:
Fast Replacement Glass provides pyroceram ceramic glass to our customers based on specific size requirements. We warrant to our immediate customers that the glass product ordered will meet certain standards and will be free from material and workmanship defects on the day of shipment.
Fast Replacement Glass does not offer warranties on performance or customer use of the glass. How a customer handles, installs, and uses processes the glass product is solely the customer's responsibility. Fast Replacement Glass cannot be held liable for breakage, damage, or failure of the product due to wrongful installation or if the glass pane is too tight and doesn't allow for thermal expansion during operation of the heating appliance.
Estimated Lead Time
Orders typically leave our warehouse within 2–3 business days. After your order ships, delivery time will depend on your location and the carrier's transit schedule.
Processing and shipping times may vary based on product availability and carrier service. If you have any questions about current stock or estimated delivery dates, please contact us before placing your order.
