Replacement Ceramic Glass Panel for Fuego Fireplace Model B

Overview:

Restore the viewing area of your Fuego Fireplace Model B with this custom-cut ceramic replacement glass panel. Measuring 18 3/8" wide by 11 1/2" high and 3/16" thick, this panel features a subtle amber tint and is manufactured to withstand temperatures up to 1250°F.

Ceramic glass is designed for high-temperature applications where exposure to heat and thermal shock can occur. This replacement panel is specifically listed for the Fuego Fireplace Model B. Always confirm the appliance model and existing glass dimensions before ordering or installing replacement glass.

Key Features:

• Custom-cut ceramic replacement glass for the Fuego Fireplace Model B

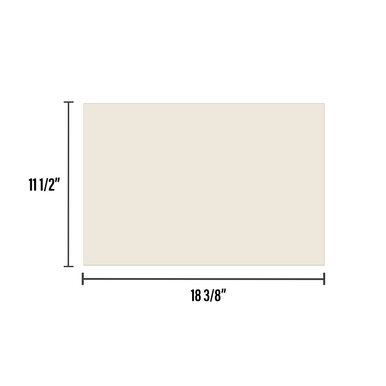

• Measures 18 3/8" wide x 11 1/2" high
• 3/16" glass thickness
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist thermal shock caused by extreme temperature changes
• Suitable ceramic glass material for high-temperature stove applications

Important Information:

Ceramic glass requires room for thermal expansion. Maintain at least 1/8" of expansion clearance as specified in the original product information. Insufficient clearance may allow the glass to expand against surrounding components and break.

Mounting screws, clips, and other metal hardware also expand as they heat. Do not overtighten mounting hardware against the ceramic glass.

Do not substitute ceramic glass for tempered glass simply because the dimensions match. Fireplace and stove glass requirements depend on the appliance design. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is specifically heater-rated and approved for this type of glass. Always follow the appliance manufacturer's instructions.

FAQs:

Q: What are the dimensions of the glass?
A: The panel measures 18 3/8" wide by 11 1/2" high and is 3/16" thick.

Q: Why does the glass need expansion clearance?
A: Ceramic glass expands when heated. The original product information specifies at least 1/8" of room for thermal expansion to help prevent breakage.

Q: Should mounting screws or clips be tightened firmly against the glass?
A: No. Mounting hardware expands when heated, so it should not be overtightened against the glass.

Q: Can I replace tempered fireplace glass with this ceramic glass?
A: Do not change glass types based on dimensions alone. Confirm the glass requirements in your appliance owner's manual before installation.

Fit / Measuring / Safety Notes:

• Verify that your appliance is the Fuego Fireplace Model B before ordering.
• Compare the listed 18 3/8" x 11 1/2" dimensions and 3/16" thickness with the requirements for your appliance.
• Allow at least 1/8" of room for thermal expansion as specified in the original product information.
• Never force ceramic glass into an opening that does not provide adequate expansion clearance.
• Do not overtighten screws, clips, or other mounting hardware against the glass.
• Follow the appliance manufacturer's installation and glass-type requirements.
• Do not replace tempered glass with ceramic glass unless the appliance manufacturer approves ceramic glass for that application.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is specifically heater-rated and approved for ceramic glass.
