Replacement Ceramic Glass for EasyFire EF5001U-B Stove

Overview:

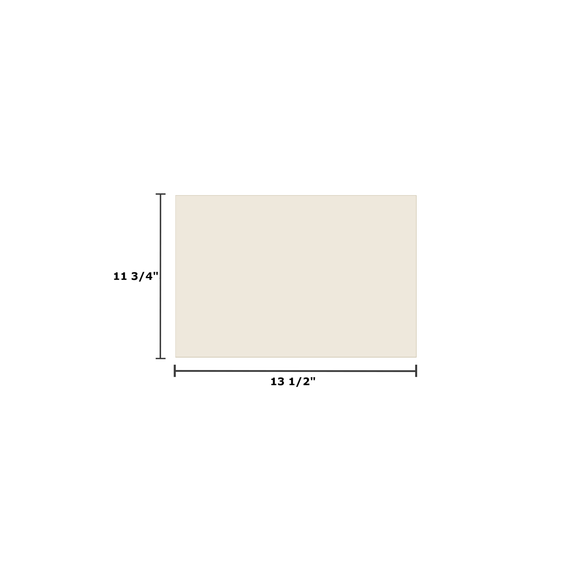

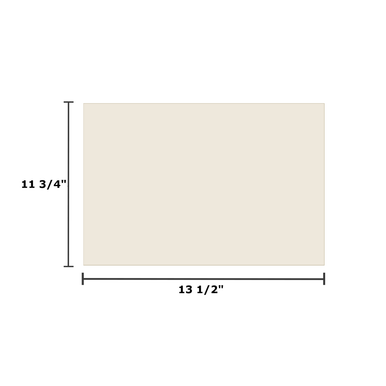

Restore the viewing area of your EasyFire EF5001U-B with a replacement ceramic stove glass cut for this application. The glass measures 13 1/2" wide by 11 3/4" high and is 3/16" thick. It features a subtle amber tint and is manufactured to withstand temperatures up to 1250°F.

Ceramic glass is designed to handle the high temperatures and rapid temperature changes associated with stove operation. It can withstand up to three times the heat of tempered glass, making the correct glass type important for approved high-temperature stove applications.

Key Features:

• Cut for the EasyFire EF5001U-B stove
• 13 1/2" wide x 11 3/4" high
• 3/16" thick ceramic glass
• Subtle amber tint
• Withstands temperatures up to 1250°F
• Designed to resist thermal shock from extreme temperature changes
• Suitable for applications where flames may periodically contact the glass

Important Information:

Proper installation clearance is essential. The replacement glass should have at least 1/8" of room for thermal expansion. Insufficient clearance can place stress on the glass as it heats and may result in breakage.

Mounting hardware also expands when exposed to high temperatures. Do not overtighten screws, clips, or other retaining hardware against the ceramic glass.

Ceramic glass should not be used as a substitute for tempered glass in fireplace doors unless the appliance or door is specifically approved for ceramic glass. Never install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and the manufacturer permits its use. Always consult the appliance owner's manual before replacing the original glass type.

FAQs:

Q: What are the glass dimensions?
A: The glass measures 13 1/2" wide x 11 3/4" high x 3/16" thick.

Q: Is this tempered glass?
A: No. This product is ceramic glass designed for high-temperature stove applications.

Q: Why is installation clearance necessary?
A: Ceramic glass and surrounding components expand as they heat. At least 1/8" of room for thermal expansion should be provided to help prevent stress-related breakage.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten mounting hardware because metal components expand when heated and excessive pressure can damage the glass.

Fit / Measuring / Safety Notes:

• Confirm the stove model is EasyFire EF5001U-B before ordering.
• Compare the listed 13 1/2" x 11 3/4" dimensions and 3/16" thickness with the existing glass or appliance requirements.
• Provide at least 1/8" of room for thermal expansion during installation.
• Do not overtighten screws, clips, or retaining hardware against the glass.
• Follow the appliance manufacturer's installation instructions and safety requirements.
• Do not replace tempered fireplace-door glass with ceramic glass unless the appliance or door is specifically approved for ceramic glass.
• Do not install ceramic glass in a factory-built or prefab fireplace unless it is heater rated and approved for this glass type.
• Do not operate the appliance with damaged, cracked, or improperly installed glass.
