13" x 9" Ceramic Replacement Glass for Select Earth Stove Models
Overview:

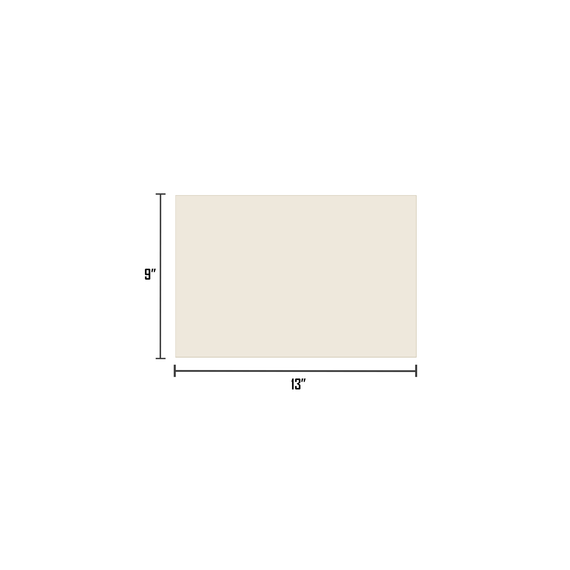

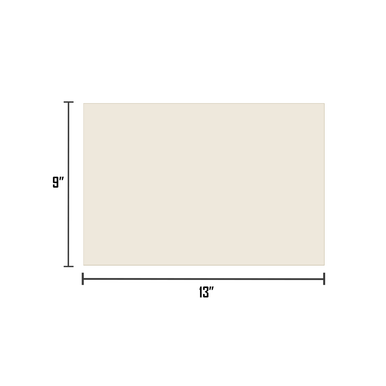

Replace damaged stove glass with this custom-cut ceramic replacement panel for select Earth Stove models. The glass measures 13" wide by 9" high and 3/16" thick, with a subtle amber tint. It is manufactured to withstand temperatures up to 1250°F and resist thermal shock caused by extreme temperature changes.
This ceramic glass is intended for high-temperature stove applications, including compatible wood, coal, and pellet stoves. Ceramic glass can withstand up to three times the heat of tempered glass. Always verify your stove model, dimensions, and glass requirements before ordering or installing replacement glass.
Key Features:
- Custom-cut ceramic replacement glass for select Earth Stove models
- 13" wide x 9" high x 3/16" thick
- Withstands temperatures up to 1250°F
- Subtle amber tint
- Designed to resist thermal shock from extreme temperature changes
- Suitable for compatible wood, coal, and pellet stove applications
Important Information:
Ceramic glass requires room for thermal expansion. Make sure the installed glass has at least 1/8" of clearance for expansion. Insufficient clearance can cause the glass to expand against surrounding components and break.
Metal screws and mounting hardware also expand when exposed to high temperatures. Do not overtighten mounting hardware against the glass.
Never substitute ceramic glass for tempered glass unless the appliance manufacturer specifically approves ceramic glass for that application. Ceramic glass should not be installed in a factory-built or prefab fireplace unless the unit is heater rated and the replacement is approved for that appliance. Consult your appliance owner's manual before installation.
FAQs:
Q: What are the dimensions of this replacement glass?
A: The glass measures 13" wide by 9" high and is 3/16" thick.
Q: Why does the glass need clearance during installation?
A: Ceramic glass expands when heated. At least 1/8" of room for thermal expansion should be provided to help prevent the glass from binding against surrounding components and breaking.
Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten screws or mounting hardware because metal components also expand when exposed to high temperatures.
Q: Can this ceramic glass replace tempered fireplace door glass?
A: Not unless ceramic glass is specifically approved for the appliance. Always follow the appliance manufacturer's requirements and owner's manual.
Fit / Measuring / Safety Notes:
- Confirm your Earth Stove model before ordering.
- Verify the existing glass opening and required glass dimensions before installation.
- Allow at least 1/8" of room for thermal expansion.
- Do not overtighten screws, clips, or other mounting hardware against the glass.
- Follow the appliance manufacturer's installation instructions and glass requirements.
- Do not replace tempered fireplace door glass with ceramic glass unless the appliance is specifically approved for ceramic glass.
- Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and the application is approved.
Helpful Links:
Product Details / Specifications:
- Glass Type: Ceramic replacement glass
- Thickness: 3/16"
- Width: 13"
- Height: 9"
- Temperature Rating: Withstands temperatures up to 1250°F
- Glass Tint: Subtle amber
Fits Stove Models:
- Earth Stove 101
- Earth Stove 105
- Earth Stove 701
- Earth Stove 705
- Earth Stove 102
- Earth Stove 201
- Earth Stove 202
- Earth Stove 205
- Earth Stove FD500
Manufacturer Warranty:
Fast Replacement Glass provides pyroceram ceramic glass to our customers based on specific size requirements. We warrant to our immediate customers that the glass product ordered will meet certain standards and will be free from material and workmanship defects on the day of shipment.
Fast Replacement Glass does not offer warranties on performance or customer use of the glass. How a customer handles, installs, and uses processes the glass product is solely the customer's responsibility. Fast Replacement Glass cannot be held liable for breakage, damage, or failure of the product due to wrongful installation or if the glass pane is too tight and doesn't allow for thermal expansion during operation of the heating appliance.
Estimated Lead Time
Orders typically leave our warehouse within 2–3 business days. After your order ships, delivery time will depend on your location and the carrier's transit schedule.
Processing and shipping times may vary based on product availability and carrier service. If you have any questions about current stock or estimated delivery dates, please contact us before placing your order.
