Replacement Ceramic Glass for Dutchwest CDW270007 & CDW300007 Steel Stoves
Overview:

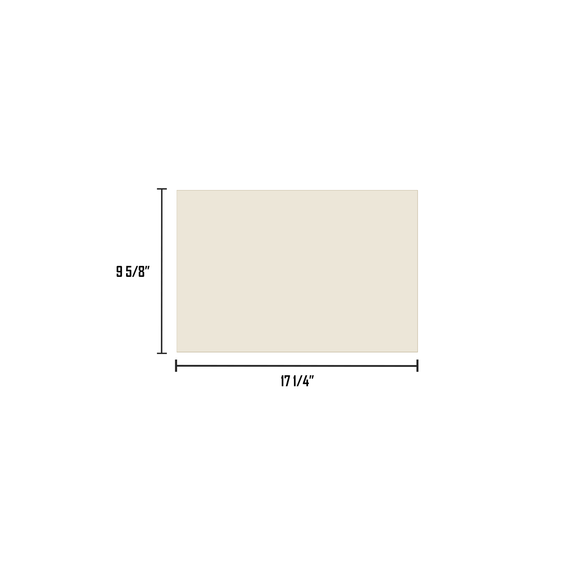

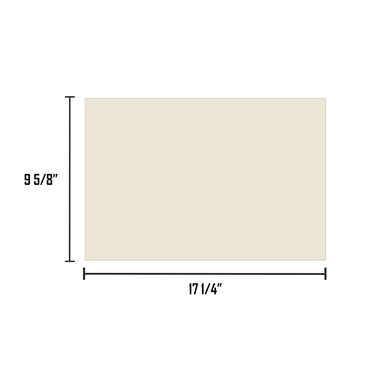

Replace damaged or broken stove glass with this custom-cut ceramic glass designed to fit Dutchwest CDW270007 and CDW300007 steel stove models. The glass measures 17 1/4" wide by 9 5/8" high and is 3/16" thick, with a subtle amber tint.
Designed for high-temperature stove applications, this ceramic glass withstands temperatures up to 1250° and resists the thermal shock caused by significant temperature changes. It can be used in compatible wood, coal, and pellet stove applications.
Key Features:
- Custom-cut replacement ceramic glass for confirmed Dutchwest models
- Fits CDW270007 and CDW300007 steel stoves
- 17 1/4" wide x 9 5/8" high
- 3/16" thick ceramic glass
- Withstands temperatures up to 1250°
- Subtle amber tint
- Designed to resist thermal shock from extreme temperature changes
- Suitable for compatible wood, coal, and pellet stove applications
Important Information:
Ceramic glass requires room to expand as it heats. Allow at least 1/8" of thermal-expansion clearance during installation. Do not over-tighten screws, clips, or other mounting hardware because metal hardware also expands when exposed to high temperatures.
Do not substitute ceramic glass for tempered glass simply because the dimensions match. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is specifically heater-rated and approved for ceramic glass. Always consult the appliance owner's manual before replacing the original glass type.
FAQs:
Q: What size is the replacement glass?
A: The glass measures 17 1/4" wide by 9 5/8" high and is 3/16" thick.
Q: How much expansion clearance should I leave?
A: Allow at least 1/8" of room for thermal expansion. Insufficient clearance can cause the glass to break as it heats and expands.
Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not over-tighten screws or mounting hardware. The hardware expands when heated and can place damaging pressure on the glass.
Q: Can I use this ceramic glass to replace tempered fireplace-door glass?
A: Not unless the appliance manufacturer specifically approves ceramic glass for that application. Check the owner's manual before changing the original glass type.
Fit / Measuring / Safety Notes:
- Confirm the stove model before ordering; this glass is listed for Dutchwest CDW270007 and CDW300007 steel models.
- Compare the required glass dimensions with the listed 17 1/4" x 9 5/8" dimensions before installation.
- Maintain at least 1/8" of clearance for thermal expansion.
- Do not over-tighten mounting screws, clips, or other hardware against the ceramic glass.
- Verify the correct glass type in the appliance owner's manual before installation.
- Never replace tempered glass with ceramic glass solely based on matching dimensions.
- Do not install ceramic glass in a factory-built or prefab fireplace unless the appliance is heater-rated and specifically approved for ceramic glass.
- Follow the appliance manufacturer's installation and safety instructions.
Helpful Links:
- View all Dutchwest Replacement Parts and Compatible Products and Motors
- Shop Stove Door Gaskets and Related Maintenance Supplies
- Read Our Stove & Fireplace Glass Guides
- Caring for Your Wood Stove: Essential Steps for Safe and Efficient Operation
- Contact Us for Help Identifying the Correct Replacement Glass Before Ordering
Product Details / Specifications:
- Brand/Application: Dutchwest
- Glass Type: Ceramic replacement glass
- Thickness: 3/16"
- Width: 17 1/4"
- Height: 9 5/8"
- Temperature Rating: Up to 1250°
- Glass Tint: Subtle amber tint
- Application: Compatible wood, coal, and pellet stove applications
- Thermal Expansion Clearance: At least 1/8"
Fits Stove Models:
- Dutchwest CDW270007 (steel)
- Dutchwest CDW300007 (steel)
Manufacturer Warranty:
Fast Replacement Glass provides pyroceram ceramic glass to our customers based on specific size requirements. We warrant to our immediate customers that the glass product ordered will meet certain standards and will be free from material and workmanship defects on the day of shipment.
Fast Replacement Glass does not offer warranties on performance or customer use of the glass. How a customer handles, installs, and uses processes the glass product is solely the customer's responsibility. Fast Replacement Glass cannot be held liable for breakage, damage, or failure of the product due to wrongful installation or if the glass pane is too tight and doesn't allow for thermal expansion during operation of the heating appliance.
Estimated Lead Time
Orders typically leave our warehouse within 2–3 business days. After your order ships, delivery time will depend on your location and the carrier's transit schedule.
Processing and shipping times may vary based on product availability and carrier service. If you have any questions about current stock or estimated delivery dates, please contact us before placing your order.
