Replacement Ceramic Stove Glass for Drolet Compak – 9 15/16" x 10 15/16"

Overview:

Restore the viewing area of your Drolet Compak with replacement ceramic stove glass cut to the specified 9 15/16" wide by 10 15/16" high dimensions. This 3/16" thick ceramic glass features a subtle amber tint and is designed to withstand temperatures up to 1250°F.

Ceramic glass is suited for the high-temperature environment found in wood, coal, and pellet stoves and is manufactured to resist the rapid temperature changes associated with thermal shock. Proper installation is essential because both the glass and surrounding mounting hardware expand as the appliance heats.

Key Features:

• Made for the Drolet Compak stove
• Custom-cut ceramic replacement glass

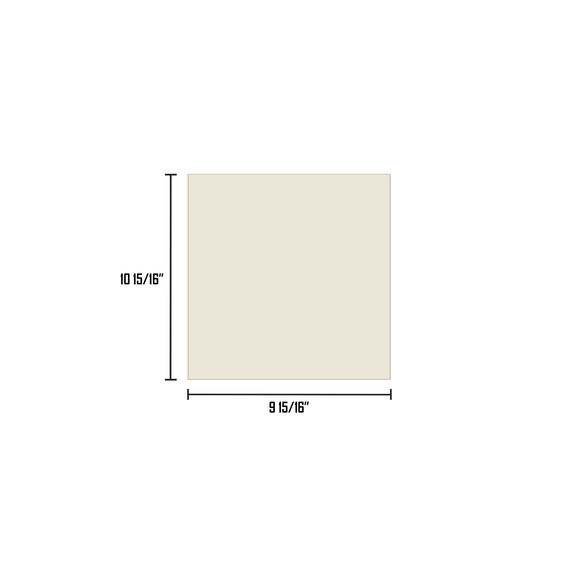

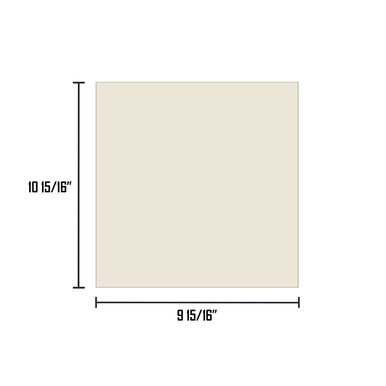

• 9 15/16" wide x 10 15/16" high
• 3/16" thick
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed for high-temperature stove applications
• Resistant to extreme temperature changes and thermal shock

Important Information:

Allow at least 1/8" of room for thermal expansion when installing the glass. Insufficient clearance can place stress on the glass as it heats and may cause breakage.

Mounting screws, clips, and other metal hardware also expand when exposed to high temperatures. Do not overtighten the retaining hardware against the glass.

Ceramic glass should not be used as a substitute for tempered glass in a fireplace door unless the appliance or door is specifically approved for ceramic glass. Never install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and the manufacturer specifies ceramic glass for that application.

FAQs:

Q: What are the glass dimensions?
A: The glass measures 9 15/16" wide by 10 15/16" high and is 3/16" thick.

Q: How much expansion clearance should I leave?
A: Allow at least 1/8" of room for thermal expansion.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten screws, clips, or other retaining hardware because metal hardware expands as it heats and can place damaging pressure on the glass.

Q: Can I use this ceramic glass in a factory-built fireplace?
A: Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and its manufacturer specifies ceramic glass for that application.

Fit / Measuring / Safety Notes:

• Verify that your stove is a Drolet Compak before ordering.
• Compare the required glass dimensions with the listed 9 15/16" width and 10 15/16" height.
• Confirm that 3/16" is the correct glass thickness for your installation.
• Allow at least 1/8" of room for thermal expansion.
• Never force an oversized piece of glass into the mounting area.
• Do not overtighten screws, clips, or retaining hardware against ceramic glass.
• Follow the appliance manufacturer's instructions when installing replacement glass.
• Do not substitute ceramic glass for tempered fireplace-door glass unless the application is specifically approved.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and ceramic glass is approved for that application.
• Stop using the appliance if the replacement glass is improperly seated, damaged, or subjected to excessive mounting pressure.
