Replacement Ceramic Glass for Craft 4830 Stove – 16" x 7 1/2"

Overview:

Restore the viewing area of your Craft 4830 with this custom-cut ceramic replacement glass. Measuring 16" wide by 7 1/2" high and 3/16" thick, this glass features a subtle amber tint and withstands temperatures up to 1250°F. Ceramic glass is designed to handle the high temperatures and thermal shock associated with wood, coal, and pellet stove applications.

Key Features:

• Custom-cut ceramic replacement glass for the Craft 4830

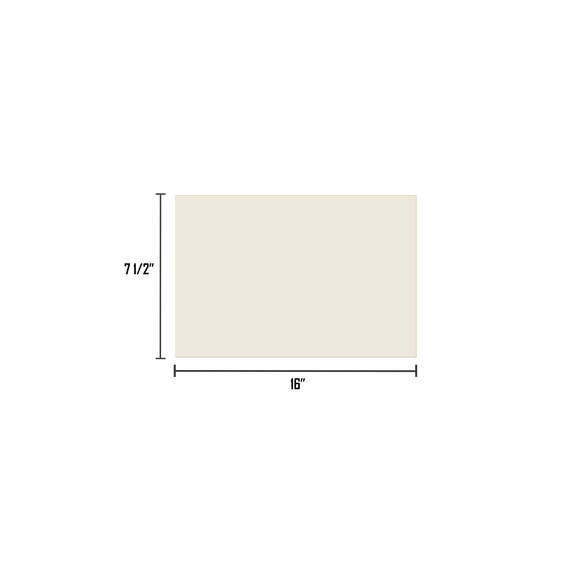

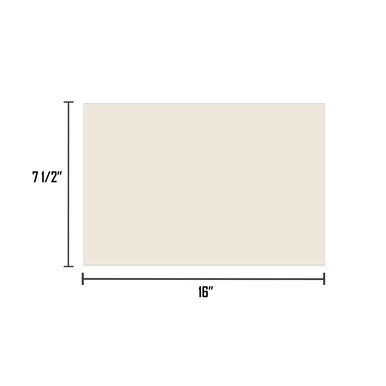

• 16" wide x 7 1/2" high x 3/16" thick
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist thermal shock from extreme temperature changes
• Suitable for wood, coal, and pellet stove applications when compatible with the appliance

Important Information:

Ceramic glass requires room to expand as it heats. Provide at least 1/8" of clearance for thermal expansion. Insufficient clearance can cause the glass to expand against surrounding components and break.

Mounting screws and other metal hardware also expand when exposed to high temperatures. Do not overtighten mounting hardware against the glass.

Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater rated and approved for this type of glass. Always consult the appliance owner's manual before replacing the original glass type.

FAQs:

Q: What are the dimensions of the glass?
A: The glass measures 16" wide x 7 1/2" high and is 3/16" thick.

Q: Is this ceramic or tempered glass?
A: This replacement panel is ceramic glass.

Q: How much expansion clearance should I leave?
A: Provide at least 1/8" of room for thermal expansion.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten the hardware. Metal mounting components expand when heated and can place damaging pressure on the glass.

Q: Can I replace tempered fireplace glass with this ceramic glass?
A: Do not substitute ceramic glass for tempered glass unless the appliance manufacturer specifically approves ceramic glass for that application. Check the owner's manual before installation.

Fit / Measuring / Safety Notes:

• Verify the stove model before ordering.
• Confirm the required 16" x 7 1/2" dimensions and 3/16" thickness against the existing installation.
• Leave at least 1/8" of room for thermal expansion.
• Do not force ceramic glass into an opening without adequate expansion clearance.
• Do not overtighten screws, clips, or mounting hardware against the glass.
• Confirm the required glass type in the appliance owner's manual.
• Never replace tempered fireplace-door glass with ceramic glass unless the appliance is specifically approved for that configuration.
• Do not install ceramic glass in a factory-built or prefab fireplace unless it is heater rated and approved for ceramic glass.
