Replacement Ceramic Glass for Craft 4426 Stove – 12" x 6 9/16"
Overview:
Restore the viewing area of your Craft 4426 stove with this custom-cut ceramic replacement glass. Measuring 12" wide by 6 9/16" high and 3/16" thick, this replacement panel features a subtle amber tint and is designed to withstand temperatures up to 1250°F.
Ceramic glass is suitable for high-temperature stove applications where flames may periodically contact the viewing panel. It is manufactured to resist thermal shock caused by extreme temperature changes and can withstand up to three times the heat of tempered glass.
Key Features:
- Custom-cut ceramic replacement glass for the Craft 4426

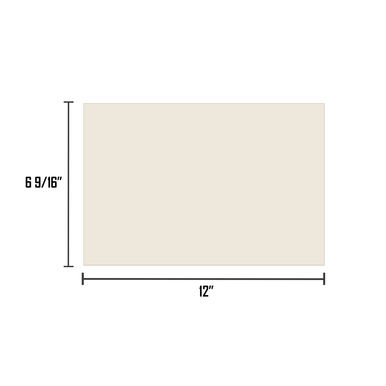

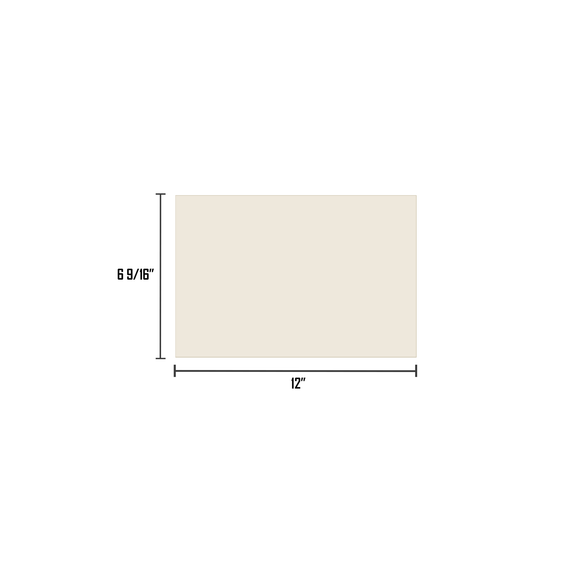

- Measures 12" x 6 9/16" x 3/16"
- Withstands temperatures up to 1250°F
- Subtle amber tint
- Designed to resist thermal shock from extreme temperature changes
- Suitable for wood, coal, and pellet stove applications when compatible with the appliance
Important Information:
Proper clearance and installation are essential when replacing stove glass. Allow at least 1/8" of room for thermal expansion. Metal screws and mounting hardware also expand when heated, so mounting hardware should not be overtightened.
Do not substitute ceramic glass for tempered glass on a fireplace door unless the appliance or masonry door is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater rated and approved for this type of glass. Always consult the appliance owner's manual before installation.
FAQs:
Q: What are the glass dimensions?
A: The glass measures 12" wide x 6 9/16" high x 3/16" thick.
Q: How much expansion clearance should I leave?
A: Allow at least 1/8" of room for thermal expansion.
Q: Should the glass mounting hardware be tightened firmly?
A: Do not overtighten the hardware. Metal mounting components expand when heated, and excessive pressure can damage the glass.
Fit / Measuring / Safety Notes:
- Confirm that your stove model is Craft 4426 before ordering.
- Verify the required glass dimensions against your existing panel or appliance specifications.
- Allow at least 1/8" of clearance for thermal expansion.
- Do not overtighten screws, clips, or other mounting hardware against the glass.
- Do not replace tempered fireplace-door glass with ceramic glass unless the appliance is specifically approved for it.
- Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and approved for ceramic glass.
- Consult your appliance owner's manual for glass type, installation, clearance, and safety requirements before use.
Helpful Links:
Product Details / Specifications:
- Compatible Brand: Craft
- Glass Type: Ceramic replacement glass
- Width: 12"
- Height: 6 9/16"
- Thickness: 3/16"
- Maximum Temperature: Up to 1250°F
- Glass Tint: Subtle amber
- Application: Wood, coal, and pellet stoves
- Thermal Expansion Clearance: At least 1/8"
Fits Stove Models:
- Craft 4426
Manufacturer Warranty:
Fast Replacement Glass provides pyroceram ceramic glass to our customers based on specific size requirements. We warrant to our immediate customers that the glass product ordered will meet certain standards and will be free from material and workmanship defects on the day of shipment.
Fast Replacement Glass does not offer warranties on performance or customer use of the glass. How a customer handles, installs, and uses processes the glass product is solely the customer's responsibility. Fast Replacement Glass cannot be held liable for breakage, damage, or failure of the product due to wrongful installation or if the glass pane is too tight and doesn't allow for thermal expansion during operation of the heating appliance.
