Replacement Ceramic Door Glass for Coalbrookdale Little Wenlock Stove

Overview:

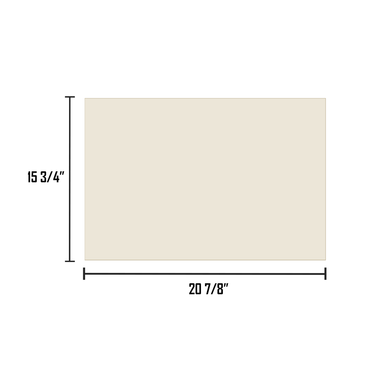

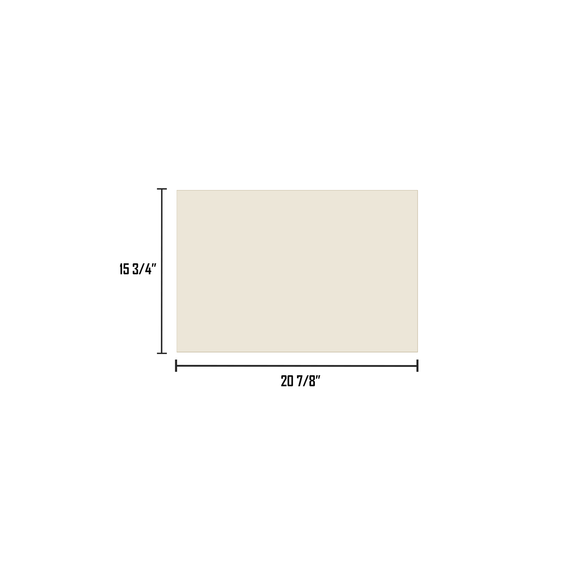

Replace damaged or broken door glass on a Coalbrookdale Little Wenlock stove with this custom-cut ceramic replacement glass. The panel measures 20 7/8" wide by 15 3/4" high and is 3/16" thick, with a subtle amber tint.

This ceramic glass is manufactured to withstand temperatures up to 1250°F and resist the extreme temperature changes, or thermal shock, encountered in compatible stove applications. Ceramic glass can withstand substantially more heat than tempered glass, making the correct glass type important for high-temperature stove doors.

Key Features:

• Custom-cut ceramic replacement glass for the Coalbrookdale Little Wenlock
• 20 7/8" wide x 15 3/4" high
• 3/16" glass thickness
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist thermal shock from extreme temperature changes

Important Information:

Proper installation clearance is essential because ceramic glass and surrounding stove components expand as they heat. Allow at least 1/8" of room for thermal expansion when installing the glass.

Do not overtighten screws, clips, or other mounting hardware. Metal hardware also expands at high temperatures, and excessive pressure against the glass can contribute to breakage.

Ceramic glass should not automatically be substituted for tempered glass in fireplace doors. Factory-built and prefab fireplaces require the glass type approved for the appliance. Consult the appliance owner's manual before replacing fireplace glass or changing glass types.

FAQs:

Q: What are the dimensions of the glass?
A: The panel measures 20 7/8" wide by 15 3/4" high and is 3/16" thick.

Q: Is this tempered glass?
A: No. This product is ceramic glass designed for high-temperature stove applications.

Q: Does the glass need room to expand?
A: Yes. The supplied installation guidance calls for at least 1/8" of room for thermal expansion.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten screws, clips, or other hardware because the metal expands when heated and excessive pressure can damage the glass.

Q: Can I use this ceramic glass in a factory-built or prefab fireplace?
A: Do not install ceramic glass in a factory-built or prefab fireplace unless the appliance is heater-rated and the ceramic glass is approved for that application. Verify the required glass type in the appliance owner's manual.

Fit / Measuring / Safety Notes:

• Confirm that your appliance is a Coalbrookdale Little Wenlock before ordering.
• Compare the listed 20 7/8" x 15 3/4" dimensions and 3/16" thickness with the glass required by your stove.
• Allow at least 1/8" of room for thermal expansion during installation.
• Never force the glass into an opening that does not provide the necessary clearance.
• Do not overtighten glass retainers, screws, clips, or mounting hardware.
• Verify the correct glass type in the appliance owner's manual before installation.
• Do not substitute ceramic glass for tempered fireplace-door glass unless the appliance manufacturer specifically approves ceramic glass for that application.
• Factory-built and prefab fireplaces require appliance-approved replacement glass.
