Replacement Ceramic Stove Glass for Blue Ridge 7GBRM – 20" x 8 5/8"

Overview:

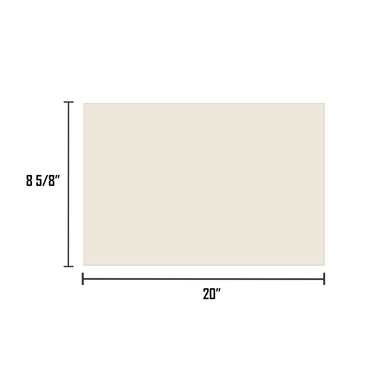

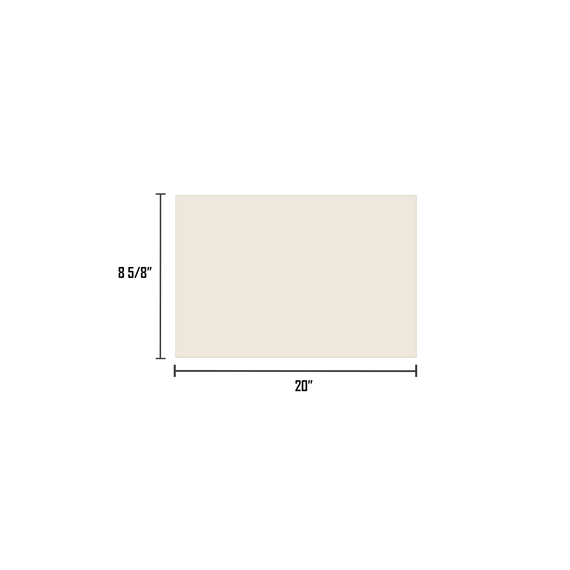

Replace damaged or cracked stove glass with this custom-cut ceramic replacement glass for Blue Ridge applications. The panel measures 20" wide by 8 5/8" high with a 3/16" thickness and features a subtle amber tint.

Designed for high-temperature stove applications, this ceramic glass withstands temperatures up to 1250°F and is manufactured to resist the thermal shock caused by extreme temperature changes. It can be used in appropriate wood, coal, and pellet stove applications when the dimensions and glass requirements match your appliance.

Key Features:

• Custom-cut ceramic replacement glass for Blue Ridge stove applications
• 20" wide x 8 5/8" high x 3/16" thick
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist extreme temperature changes and thermal shock
• Suitable for appropriate wood, coal, and pellet stove applications

Important Information:

Correct installation clearance is essential. Allow at least 1/8" of room for thermal expansion around the replacement glass. Ceramic glass expands when heated, and insufficient clearance can cause the panel to break.

Mounting screws and other metal hardware also expand when exposed to stove temperatures. Do not overtighten glass-retaining hardware. The glass should be held securely without being rigidly compressed by the mounting hardware.

Ceramic glass should not automatically be substituted for tempered glass. Do not install this glass in a factory-built or prefab fireplace unless the appliance is specifically heater-rated and approved for ceramic glass. Always consult the appliance owner's manual before changing the original glass type.

FAQs:

Q: What are the dimensions of this Blue Ridge replacement glass?
A: The glass measures 20" wide by 8 5/8" high and is 3/16" thick.

Q: Can this ceramic glass be used in a wood stove?
A: It is intended for appropriate wood, coal, and pellet stove applications. Confirm your appliance's required dimensions and glass type before ordering.

Q: How much clearance should I leave around the glass?
A: Allow at least 1/8" of room for thermal expansion.

Q: Should the glass-retaining hardware be tightened firmly?
A: The hardware should secure the glass without being overtightened. Metal hardware expands when heated, and excessive pressure can contribute to glass breakage.

Q: Can I replace tempered fireplace glass with this ceramic glass?
A: Do not substitute ceramic glass for tempered glass unless your appliance manufacturer specifically approves it. Check the owner's manual before changing glass types.

Fit / Measuring / Safety Notes:

• Verify the 20" x 8 5/8" dimensions before ordering.
• Confirm that your appliance requires 3/16" ceramic glass.
• Allow at least 1/8" of room for thermal expansion.
• Never force an oversized glass panel into the opening.
• Do not overtighten screws, clips, or mounting hardware against the glass.
• Confirm the appliance is designed for ceramic rather than tempered glass.
• Do not substitute ceramic glass for tempered fireplace-door glass without manufacturer approval.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and approved for ceramic glass.
• Follow the appliance owner's manual and manufacturer requirements for installation and replacement glass.
