Replacement Ceramic Glass for Blue Ridge 7BSDD Stove – 9" x 6 1/2"

Overview:

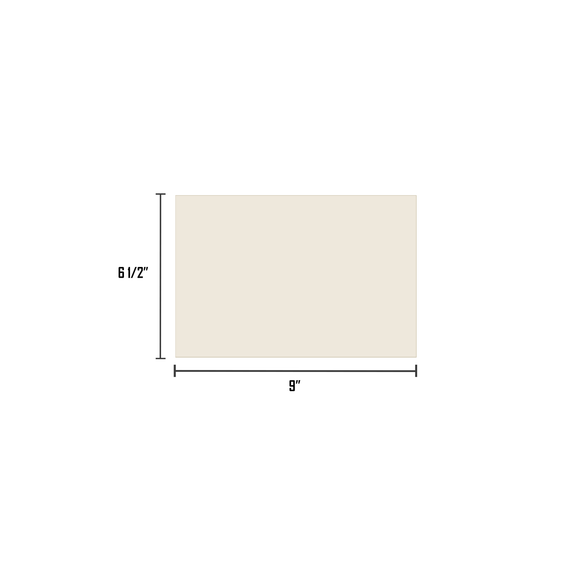

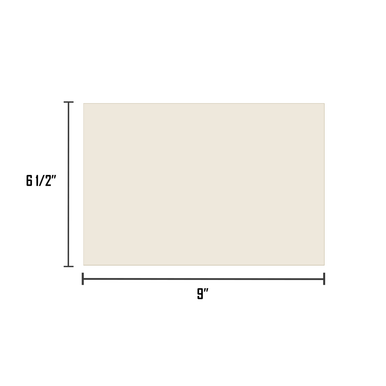

Replace damaged or worn stove glass with this Blue Ridge 7BSDD ceramic replacement glass. The rectangular panel measures 9" wide by 6 1/2" high with a 3/16" thickness and features a subtle amber tint. The ceramic glass is rated to withstand temperatures up to 1250°, making it suitable for the high-temperature environment of the specified stove application.

Always verify your existing glass dimensions and appliance requirements before ordering. Proper clearance during installation is important because ceramic glass requires room for thermal expansion.

Key Features:

• Ceramic replacement glass for the Blue Ridge 7BSDD application
• 9" x 6 1/2" rectangular panel for straightforward replacement
• 3/16" thickness to match the listed glass specification
• Rated to withstand temperatures up to 1250°
• Subtle amber tint for a clear view of the fire
• Ceramic construction designed to handle rapid temperature changes

Important Information:

Measure your existing glass and mounting area before ordering rather than relying on appearance alone. Allow at least 1/8" of clearance for thermal expansion when installing the glass.

Do not overtighten screws, clips, or other metal retaining hardware against the ceramic glass. Refer to your appliance owner's manual for the manufacturer's installation and replacement requirements.

Ceramic glass should not be installed in a factory-built fireplace or prefab unit unless that appliance is heater-rated for the application.

FAQs:

Q: What are the dimensions of this replacement glass?
A: The glass measures 9" wide by 6 1/2" high and is 3/16" thick.

Q: Should I measure my existing glass before ordering?
A: Yes. Verify the dimensions and configuration of your existing glass and mounting area before purchasing a replacement.

Q: How much room should be left for thermal expansion?
A: The supplied installation guidance recommends allowing at least 1/8" of room for thermal expansion.

Q: Can I tighten the retaining hardware firmly against the glass?
A: Avoid overtightening metal screws, clips, or mounting hardware because excessive pressure can damage the ceramic glass.

Fit / Measuring / Safety Notes:

• Verify the appliance identification and existing glass dimensions before ordering.
• Measure the required width and height with a tape measure.
• Confirm the required 3/16" thickness.
• Allow at least 1/8" of room for thermal expansion during installation.
• Do not force the glass into an opening that does not provide the required clearance.
• Avoid overtightening screws, clips, and other retaining hardware against the glass.
• Follow the appliance manufacturer's instructions for removing and installing replacement glass.
• Do not install ceramic glass in a factory-built fireplace or prefab unit unless the appliance is heater-rated for the application.
• Replace damaged glass before operating the appliance.
