Replacement Ceramic Glass for Avalon Camano & Lopi AGP Stove Models

Overview:

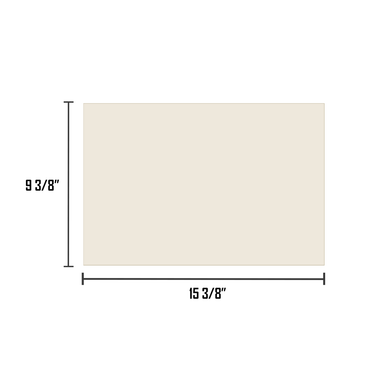

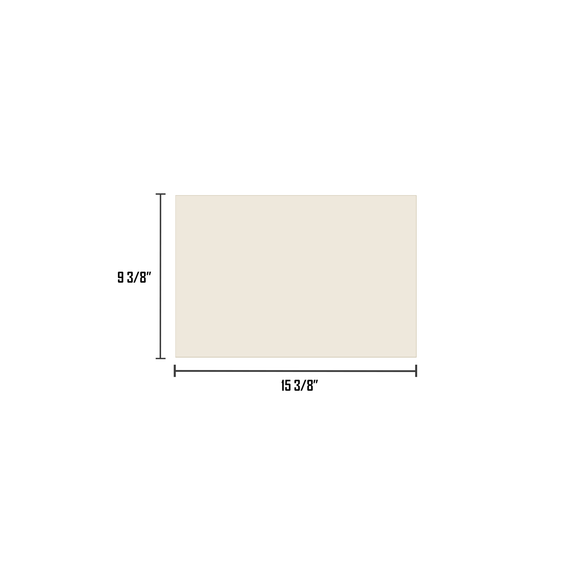

Replace damaged or broken stove glass with this custom-cut ceramic replacement glass sized for the Avalon Camano and Lopi AGP models. The panel measures 15 3/8" wide by 9 3/8" high and is 3/16" thick, with a subtle amber tint.

Designed for high-temperature stove applications, this ceramic glass withstands temperatures up to 1250°F and resists the rapid temperature changes associated with thermal shock. Ceramic glass can withstand up to three times the heat of tempered glass, making the correct glass type important for approved stove applications.

Always verify your appliance model, required glass dimensions, and glass type before ordering or installing replacement glass.

Key Features:

• Custom-cut ceramic replacement glass for confirmed Avalon and Lopi stove models
• 15 3/8" wide x 9 3/8" high x 3/16" thick
• Subtle amber tint
• Withstands temperatures up to 1250°F
• Designed to resist extreme temperature changes and thermal shock
• Suitable for confirmed wood, coal, and pellet stove applications

Important Information:

Ceramic glass requires adequate clearance for thermal expansion. Allow at least 1/8" of room for expansion as specified in the supplied product information. Insufficient clearance can place stress on the panel and cause it to break.

Mounting screws and other metal hardware also expand when exposed to high temperatures. Do not overtighten the glass-retaining hardware. Hardware secured too firmly can create pressure points that may damage the glass as the appliance heats and cools.

Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater rated and approved for this application. Consult the appliance owner's manual before replacing the glass.

FAQs:

Q: What are the dimensions of the glass?
A: The panel measures 15 3/8" wide x 9 3/8" high x 3/16" thick.

Q: Should the glass fit tightly inside the frame?
A: No. The supplied installation guidance calls for at least 1/8" of room for thermal expansion. A glass panel installed without adequate clearance may expand and break.

Q: Should I tighten the retaining hardware firmly against the glass?
A: Do not overtighten the mounting hardware. Metal hardware expands as it heats, and excessive pressure can contribute to glass breakage.

Q: Can I use this ceramic glass to replace tempered fireplace-door glass?
A: Not unless the specific appliance is approved for ceramic glass. Check the owner's manual and manufacturer requirements before changing glass types.

Fit / Measuring / Safety Notes:

• Confirm the stove manufacturer, model, glass dimensions, thickness, and required glass type before ordering. Do not determine compatibility from dimensions alone when model-specific replacement information is available.
• Provide at least 1/8" of room for thermal expansion according to the supplied installation guidance. Do not force the glass into an opening or overtighten screws, clips, or other retaining hardware against the panel.
• Never replace tempered fireplace-door glass with ceramic glass unless the appliance manufacturer specifically approves the substitution. Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater rated and approved for ceramic glass.
• Allow the appliance to cool completely before servicing or replacing the glass. Follow the appliance manufacturer's installation and safety instructions.
