Replacement Ceramic Glass Panel for Austroflamm G1 Stove

Overview:

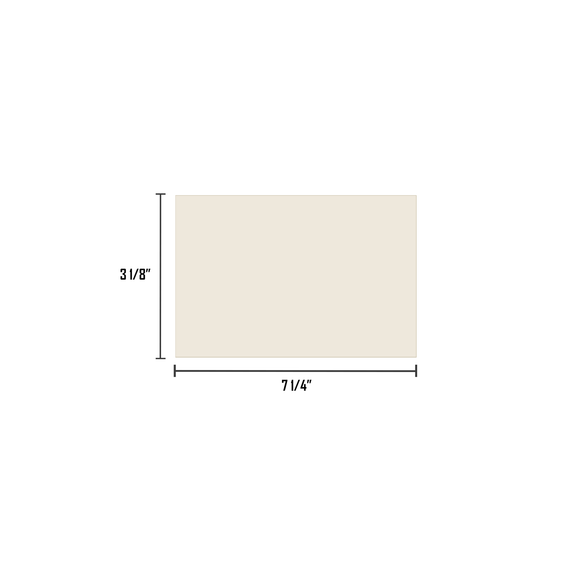

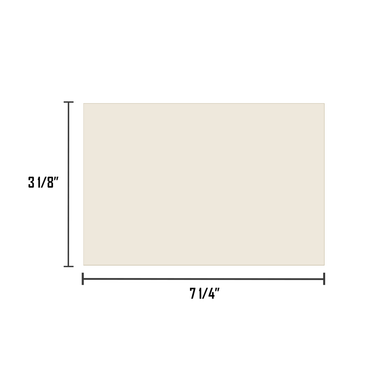

Replace damaged or broken glass in an Austroflamm G1 stove with this custom-cut ceramic replacement glass panel. The panel measures 7 1/4" wide by 3 1/8" high and is 3/16" thick, with a subtle amber tint.

Designed for high-temperature stove applications, the ceramic glass withstands temperatures up to 1250° and is manufactured to resist the thermal shock caused by significant temperature changes. Ceramic glass can withstand up to three times the heat of tempered glass.

Key Features:

• Custom-cut ceramic replacement glass for the Austroflamm G1
• 7 1/4" wide x 3 1/8" high
• 3/16" glass thickness
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist thermal shock in high-temperature stove applications
• Suitable for wood, coal, and pellet stove applications when compatible with the appliance

Important Information:

Proper clearance and installation are essential when replacing stove glass. Allow at least 1/8" of room for thermal expansion. Glass that is installed without adequate expansion clearance may break as it heats.

Metal screws, clips, and other mounting hardware also expand when exposed to high temperatures. Do not overtighten mounting hardware against the glass.

Ceramic glass should not be used as a substitute for tempered glass on a fireplace door unless the appliance or door is specifically approved for ceramic glass. Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and the manufacturer permits ceramic glass.

FAQs:

Q: What are the dimensions of the glass?
A: The panel measures 7 1/4" wide x 3 1/8" high and is 3/16" thick.

Q: How much expansion clearance should I allow?
A: Allow at least 1/8" of room for thermal expansion to help prevent the glass from breaking as it heats.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten screws, clips, or other mounting hardware. Metal components expand when heated and excessive pressure can damage the glass.

Q: Can I use this ceramic glass to replace tempered fireplace door glass?
A: Not unless the fireplace or door is specifically approved for ceramic glass. Check the appliance owner's manual before changing the original glass type.

Fit / Measuring / Safety Notes:

• Confirm that your stove model is Austroflamm G1 before ordering.
• Compare the required glass dimensions with the listed 7 1/4" x 3 1/8" dimensions.
• Confirm that your appliance requires 3/16" ceramic glass.
• Allow at least 1/8" of room for thermal expansion during installation.
• Do not overtighten screws, clips, or other mounting hardware against the glass.
• Follow the appliance manufacturer's installation and clearance requirements.
• Do not substitute ceramic glass for tempered fireplace door glass unless specifically approved by the appliance manufacturer.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and approved for ceramic glass.
• Consult the Austroflamm G1 owner's manual when verifying installation requirements.
