Replacement Ceramic Glass for Ashley AC2000, AWC31 & US Stove 2200I
Overview:

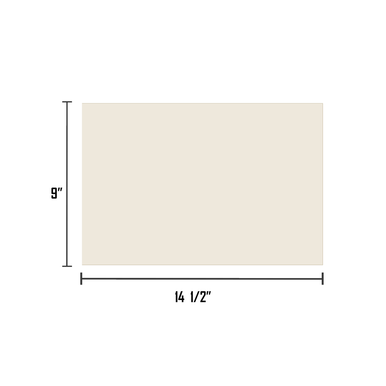

Replace damaged stove glass with this custom-cut ceramic replacement glass designed to fit Ashley AC2000, Ashley AWC31, and US Stove 2200I models. The glass measures 14 1/2" wide by 9" high and is 3/16" thick, with a subtle amber tint.
Ceramic glass is designed for the high-temperature environment found in compatible wood, coal, and pellet stoves. It withstands temperatures up to 1250°F and resists the rapid temperature changes, or thermal shock, that can occur when flames periodically contact the glass.
Key Features:
- Custom-cut ceramic replacement glass
- Fits Ashley AC2000, Ashley AWC31, and US Stove 2200I
- 14 1/2" wide x 9" high
- 3/16" thick
- Subtle amber tint
- Withstands temperatures up to 1250°F
- Designed to resist thermal shock
- Suitable for compatible wood, coal, and pellet stove applications
Important Information:
Proper clearance and installation are essential. The replacement glass should have at least 1/8" of room for thermal expansion. Do not over-tighten screws, clips, or other mounting hardware because metal hardware also expands as it heats and excessive pressure can cause the glass to break.
Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance manufacturer specifically approves ceramic glass for that application. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater-rated and the manufacturer specifies ceramic glass as appropriate.
FAQs:
Q: What are the glass dimensions?
A: The glass measures 14 1/2" wide x 9" high x 3/16" thick.
Q: Does the glass need room to expand?
A: Yes. Allow at least 1/8" of room for thermal expansion.
Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not over-tighten screws, clips, or other mounting hardware. Hardware expands when heated, and excessive pressure can damage the glass.
Q: Can I use this ceramic glass to replace tempered fireplace-door glass?
A: Not unless the appliance manufacturer specifically approves ceramic glass for that application. Check the appliance owner's manual before changing glass types.
Fit / Measuring / Safety Notes:
- Verify the appliance model before ordering.
- Confirm that 14 1/2" x 9" x 3/16" matches the glass required by your appliance.
- Provide at least 1/8" of room for thermal expansion.
- Never force an oversized panel into the mounting area.
- Do not over-tighten screws, clips, or other retaining hardware.
- Follow the appliance manufacturer's instructions when installing replacement glass.
- Do not replace tempered fireplace glass with ceramic glass unless specifically approved by the appliance manufacturer.
- Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and approved for this type of glass.
Helpful Links:
- View all Ashley Replacement Glass for Wood Stoves and Replacement Parts and Motors
- Shop Stove Door Gaskets and Related Replacement Parts
- Read Our Stove & Fireplace Glass Guides
- Caring for Your Wood Stove: Essential Steps for Safe and Efficient Operation
- Contact Us for Help Identifying the Correct Replacement Glass for Your Stove
Product Details / Specifications:
- Glass Type: Ceramic replacement glass
- Width: 14 1/2"
- Height: 9"
- Thickness: 3/16"
- Temperature Rating: Up to 1250°F
- Tint: Subtle amber
- Application: Compatible wood, coal, and pellet stove replacement glass
- Required Expansion Clearance: At least 1/8"
Fits Stove Models:
- Ashley AC2000
- Ashley AWC31
- US Stove 2200I
Manufacturer Warranty:
Fast Replacement Glass provides pyroceram ceramic glass to our customers based on specific size requirements. We warrant to our immediate customers that the glass product ordered will meet certain standards and will be free from material and workmanship defects on the day of shipment.
Fast Replacement Glass does not offer warranties on performance or customer use of the glass. How a customer handles, installs, and uses processes the glass product is solely the customer's responsibility. Fast Replacement Glass cannot be held liable for breakage, damage, or failure of the product due to wrongful installation or if the glass pane is too tight and doesn't allow for thermal expansion during operation of the heating appliance.
Estimated Lead Time
Orders typically leave our warehouse within 2–3 business days. After your order ships, delivery time will depend on your location and the carrier's transit schedule.
Processing and shipping times may vary based on product availability and carrier service. If you have any questions about current stock or estimated delivery dates, please contact us before placing your order.
