Replacement Side Glass for Appalachian 52 Bay Stove – 9 3/8" x 4"

Overview:

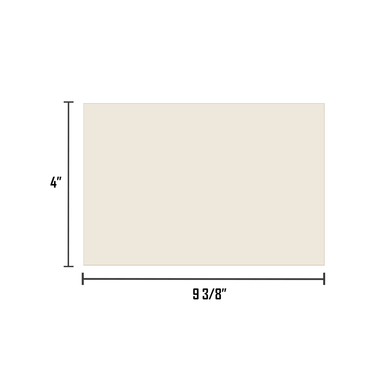

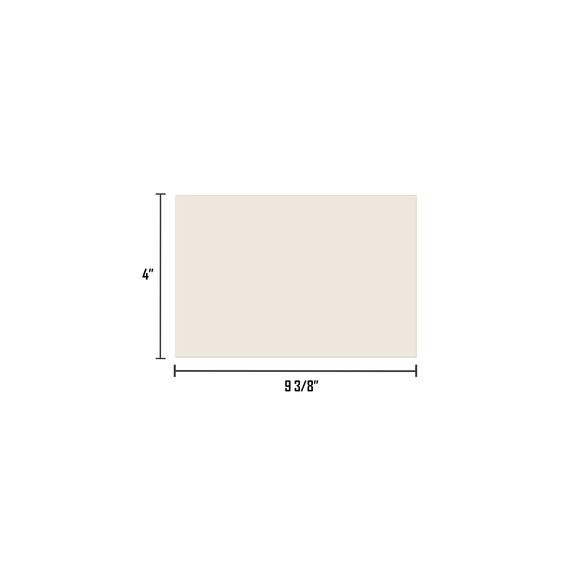

Replace damaged or broken side glass on a compatible Appalachian 52 Bay stove with this custom-cut ceramic replacement panel. The glass measures 9 3/8" wide by 4" high and is 3/16" thick, with a subtle amber tint.

Designed for high-temperature stove applications, this ceramic glass withstands temperatures up to 1250°F. It is manufactured to handle the rapid temperature changes that can occur when flames periodically contact the glass.

This replacement is specifically identified for the side glass position on the Appalachian 52 Bay. Before ordering or installing, verify the stove model, glass position, and required dimensions against your existing glass opening or appliance documentation.

Key Features:

• Custom-cut ceramic replacement glass for the Appalachian 52 Bay side window
• Measures 9 3/8" wide x 4" high x 3/16" thick
• Withstands temperatures up to 1250°F
• Subtle amber tint
• Designed to resist thermal shock from extreme temperature changes
• Suitable ceramic glass material for high-temperature stove applications

Important Information:

Ceramic stove glass requires room to expand as it heats. Allow at least 1/8" of clearance for thermal expansion. Insufficient clearance can place stress on the glass and cause it to break.

Mounting hardware also expands when heated. Do not overtighten screws, clips, or other retaining hardware against the glass.

Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance or door is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater-rated and the manufacturer permits this type of replacement glass. Always consult the appliance owner's manual before installation.

FAQs:

Q: What temperature can the glass withstand?
A: The stated temperature resistance is up to 1250°F

Q: How much expansion clearance should I allow?
A: Allow at least 1/8" of room for thermal expansion.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten screws or retaining hardware. Metal hardware expands when heated, and excessive pressure can damage the glass.

Q: Can this ceramic glass replace tempered glass in any fireplace door?
A: No. Do not substitute ceramic glass for tempered glass unless the appliance or fireplace door is specifically approved for ceramic glass. Check the owner's manual before making this type of replacement.

Fit / Measuring / Safety Notes:

• Confirm that your appliance is an Appalachian 52 Bay before ordering.
• Verify that you are replacing the side glass rather than another glass panel on the stove.
• Compare the required opening and existing glass dimensions with the listed 9 3/8" x 4" dimensions.
• Allow at least 1/8" of clearance for thermal expansion.
• Do not force an oversized glass panel into the opening.
• Do not overtighten screws, clips, or retaining hardware against the glass.
• Follow the appliance manufacturer's installation and clearance instructions.
• Do not replace tempered fireplace-door glass with ceramic glass unless the appliance is specifically approved for that configuration.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and approved for ceramic glass.
