Center Replacement Glass for Older Appalachian 36-BW Stove Models

Overview:

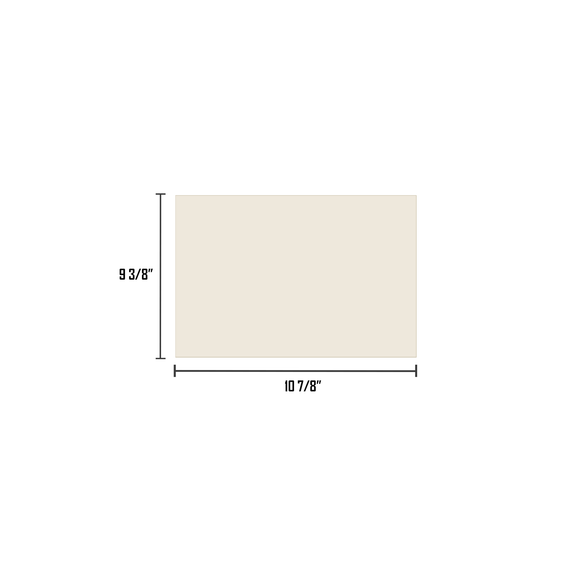

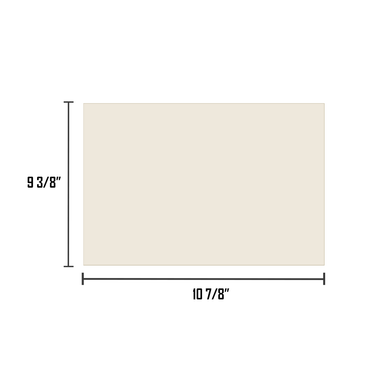

Replace the center glass in an older Appalachian 36-BW stove with this custom-cut ceramic glass panel. The glass measures 10 7/8" wide by 9 3/8" high and is 3/16" thick, with a subtle amber tint.

Designed for high-temperature stove applications, this ceramic glass withstands temperatures up to 1250° and resists the rapid temperature changes associated with thermal shock. Ceramic glass can withstand up to three times the heat of tempered glass.

Before ordering or installing, verify your stove model and carefully compare the required glass dimensions with the measurements listed below.

Key Features:

• Custom-cut center replacement glass for older Appalachian 36-BW stove models
• High-temperature ceramic glass for wood, coal, and pellet stove applications
• Measures 10 7/8" wide x 9 3/8" high x 3/16" thick
• Subtle amber tint
• Withstands temperatures up to 1250°
• Designed to resist thermal shock from extreme temperature changes

Important Information:

Ceramic glass requires room to expand as it heats. Allow at least 1/8" of clearance for thermal expansion. Insufficient clearance can place stress on the glass and may cause it to break.

Mounting screws and other metal hardware also expand when heated. Do not overtighten the glass-retaining hardware during installation.

Do not substitute ceramic glass for tempered glass in a fireplace door unless the appliance or door is specifically approved for ceramic glass. Ceramic glass should never be installed in a factory-built or prefab fireplace unless the unit is heater-rated and approved for this type of glass. Always consult the appliance owner's manual before replacing the original glass type.

FAQs:

Q: Is this tempered glass?
A: No. This product is ceramic glass intended for high-temperature stove applications.

Q: How much expansion clearance should I allow?
A: Allow at least 1/8" of room for thermal expansion to help prevent stress and breakage as the glass heats.

Q: Should the mounting hardware be tightened firmly against the glass?
A: No. Do not overtighten mounting hardware because metal components expand when exposed to high temperatures.

Q: Can I use this ceramic glass in a factory-built or prefab fireplace?
A: Not unless the unit is heater-rated and specifically approved for ceramic glass. Consult the appliance owner's manual before changing the original glass type.

Fit / Measuring / Safety Notes:

• Confirm that your appliance is an older Appalachian 36-BW model before ordering.
• Compare the required replacement dimensions with the listed 10 7/8" x 9 3/8" dimensions.
• Allow at least 1/8" of clearance for thermal expansion during installation.
• Do not overtighten screws, clips, or other glass-retaining hardware.
• Confirm the correct glass type in the appliance owner's manual before installation.
• Do not replace tempered fireplace-door glass with ceramic glass unless the appliance or door is specifically approved for ceramic glass.
• Do not install ceramic glass in a factory-built or prefab fireplace unless the unit is heater-rated and approved for ceramic glass.
• Replace damaged glass before operating the appliance.
