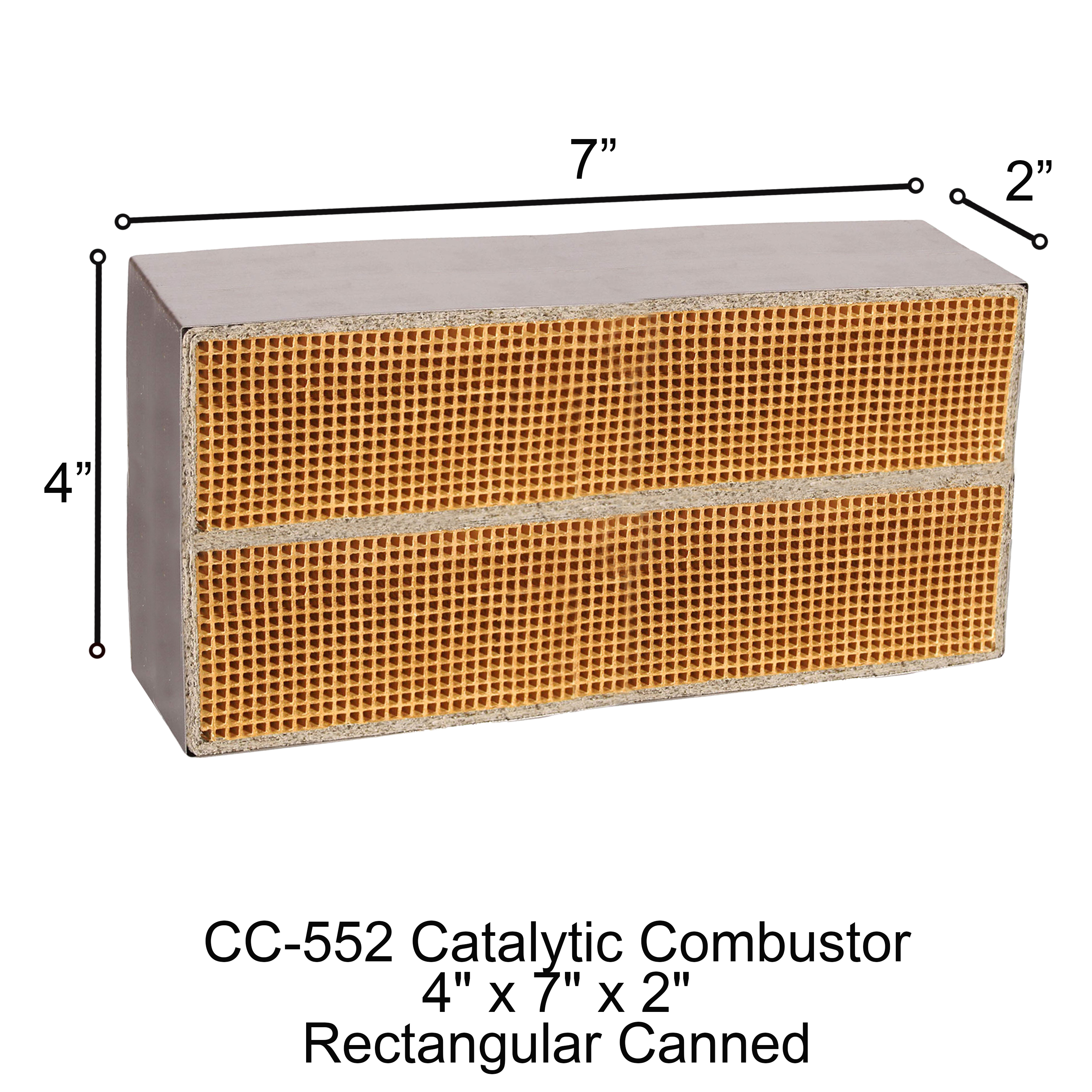

CC-552 Catalytic Combustor 4" x 7" x 2" Rectangular Canned

Write a review

Free Shipping | Ships Out Within 2-3 Business Days

$223.94

Availability: Available

Quantity:

+ −

Description
Warranty
Specs
Product Question
Reviews

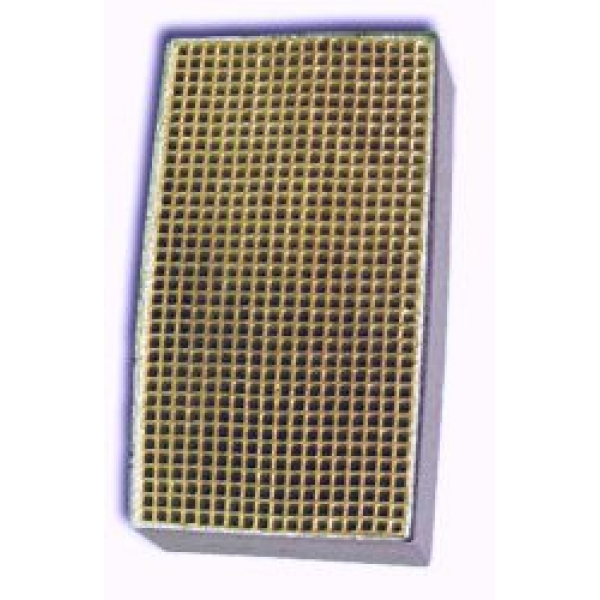

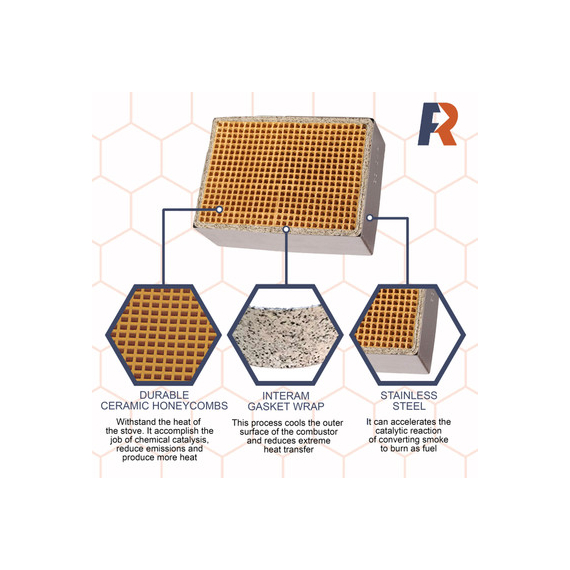

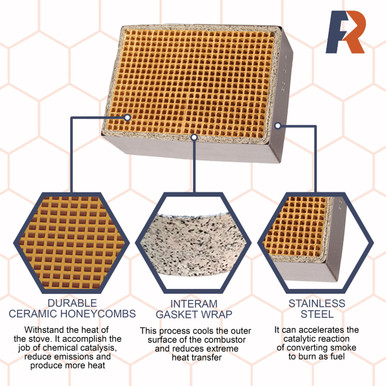

CC-552 Rectangular Canned 4 x 7 x 2 Inch Catalytic Combustor, 25-cell replacement catalytic combustor with metal band. This canned ceramic honeycomb combustor fits the following models of wood stoves:

Buck Stove 20
Buck Stove 20 ZC
Buck Stove 41
Buck Stove 50
Buck Stove 70 Bay
Country Comfort Orville 350CC
Jotul 3TDIC-2
Jotul Alpha
Jotul Firelight
Jotul Series 3
Jotul Series 8

Note About Installing Combustor Gaskets
When installing a replacement catalytic combustor, always allow a visible expansion joint between the catalyst and the stove housing. Do not “pack” any type of gasket around the stove combustor and between the combustor housing. If you install the new replacement combustor with no visible expansion joint, your combustor is subject to premature fracturing and overheating of your stove components. Another issue with the unneeded tight gaskets is that it makes removable of the old combustor difficult. Always keep in mind to clean off all the residues from any old gaskets and do a clean installation to save you money in the future.

Downloads:

Manufacturer Warranty:

Combustors are guaranteed to contain sufficient catalytic precious metals (platinum and/or palladium) formulated and properly applied to conform to requirements of the U.S. Environmental Protection Agency for certified wood-burning products, and when installed in USA are warranted for structural integrity for five years or 12,000 hours burn-time, whichever comes first, when correctly installed and maintained. Failure due to incorrect use, including with fuels other than dry natural wood, is excluded.

REMEDIES UNDER THIS WARRANTY Manufacturer will replace a defective combustor, free of charge, for the first 90 days following the date of original purchase. After the first 90 days, replacement will be at the following discount:

Year 1 — 50% of original price paid
Year 2 — 40% of original price paid
Year 3 — 30% of original price paid
Year 4 — 20% of original price paid
Year 5 — 10% of original price paid
Year 6 — Replacement at current retail price.

Model:	CC-552
Height:	4"
Length:	7"
Width:	2"
Cells Per Inch:	25

I need to replace the catylst on a Jotul model 3TDIC-2. Their part # is126421. it is in 2 rectangular pieces with the metal band retaining the two pieces. I assume the replacement being one piece will fit in the existing band? As for the dimensions it looks to be about the 4 x 7 and lays flat with a height of maybe 2 inches. Wanted to be sure I get the right thing. It also needs the insulation replaced. Is their a generic material to just cut that to size? It is fits around the metal enclosure. The Jotul part for insulation is 127194.

Asked by Jim Butler | 12-11-2017, 08:37 PM | 0 answer(s)
